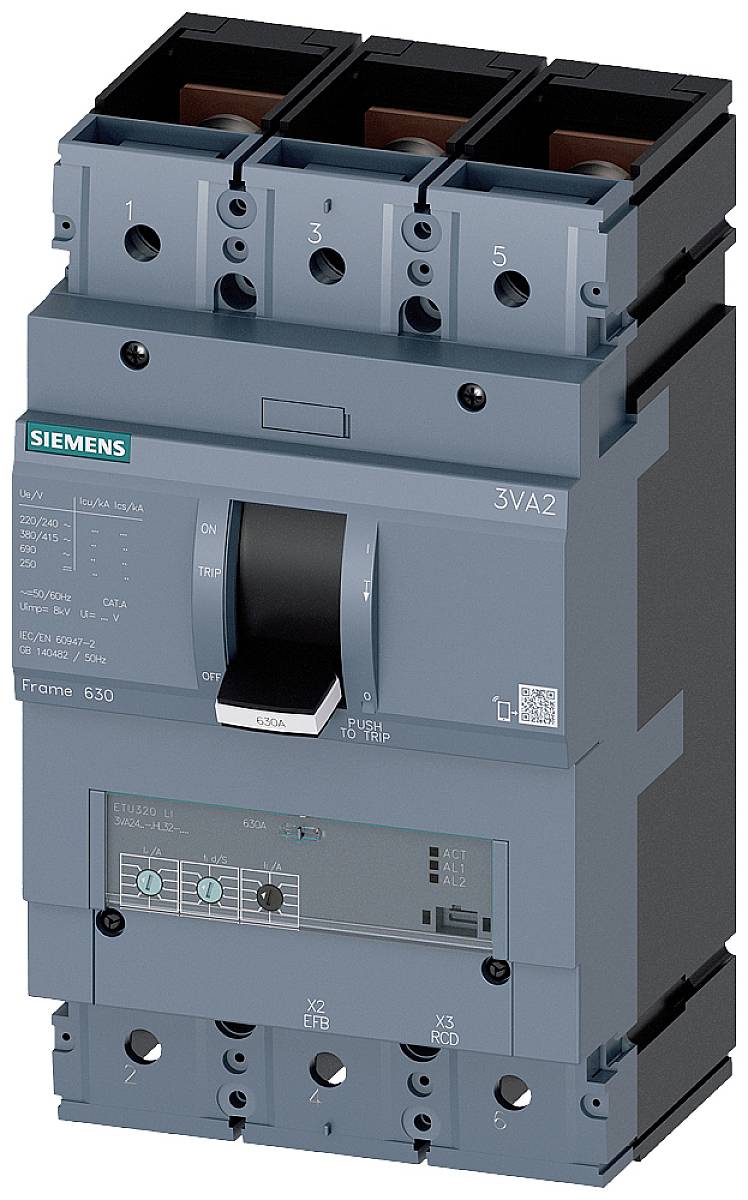

Name: Siemens 3VA2463-5HL32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 252 - 630 A Switching voltage (max.): 69
Brand: Siemens
SKU: 1539111
Availability: BackOrder

Technical drawing of an electrical switch with dimensions in millimetres. Front, side and top views are shown.

Stroke drawing/circuit diagram

Product type

Circuit breaker

Amperage adjustment range (max.)

630 A

Connection

Screws

Packaging type

Piece

Type

3VA2463-5HL32-0AA0

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,095.00 / piece)

€ 2,095.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Mechanical life: 15000
Electrical life: 4000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.
Power loss: 54 W
Weight: 5,152 kg

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA2463-5HL32-0AA0

Amperage adjustment range (min.): 252 A

Amperage adjustment range (max.): 630 A

Adjustment range (amperage): 252 - 630 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: M

OCR type: ETU320

Connection: Screws

: IP40

Depth: 110 mm

Width: 138 mm

Height: 248 mm

Dim: (W x H x D) 138 x 248 x 110 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 630 A

: 3

: 250-630 A

: 0

: 690-690 V

: 162 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 55 kA

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1539111 Siemens 3VA2463-5HL32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 252 - 630 A Switching voltage (max.): 69

User & Safety Instructions

User & Safety Instructions 1539111 Siemens 3VA2463-5HL32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 252 - 630 A Switching voltage (max.): 69

Description

Circuit breaker 3VA2 IEC Frame 630 switching property class M ICU=55kA @ 415V 3-pin, system protection ETU320, LI, in=630A Overload protection IR=250A...630A Short-circuit protection II=1.5...9x in screw-flat connection Compact circuit breaker 3VA2 with ETU 8-series for plant protection. The 3VA compact circuit breakers from Siemens are an important component of the SENTRON protective components for industrial applications as well as for applications in the infrastructure sector and offer effective plant, starter and motor protection through safe shutdown in the event of an overload or short-circuit. The 3VA compact circuit breakers set new standards in flexibility and a wide range of modular accessories. Uniform accessories for several sizes across all series of 3VA1 and 3VA2 compact circuit breakers. This version of the 3VA compact circuit breaker is characterized above all by: 1. Compact design. 2. Available as a variant for plant protection and generator protection. 3. Available in 3- and 4-pin versions. 4. Four switching power classes of 55 kA ... 150 kA at 415 V. 5. Depending on the size: Rated current 25 A. 6. Mounting in fixed installation, plug-in technology, plug-in technology possible. 7. The series has an electronic overcurrent release. 8. Has an integrated display for measuring value display. 9. Integrated measuring function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET and PROFIBUS. 10. Modular and easy to install internal accessories with a wide range of functions. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems, switches and sockets for the safe, efficient electrical infrastructure in buildings and industry.

This text is machine translated.
