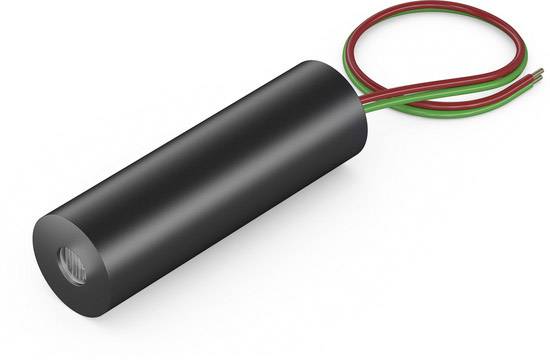

Picotronic Laser module Line Red 1 mW LI 635-1-3 (10.5 x 26)-C150-F285
Product type
Laser module
Emission characteristics
Line
Wavelength
635 nm
Power
1 mW
Laser category
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 114.99 / piece)
€ 114.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Laser module line
- Red
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Connection cable 150 mm
- Product type
Laser module
- Type
LI 635-1-3 (10.5 x 26)-C150-F285
- Emission characteristics
Line
- Focus properties
285 mm fixed-focus
- Factory colour
Red
- Wavelength
635 nm
1 mW
- Laser category
1
- Angular aperture
90°
- Beam divergence
1.5 mrad
- Clearance
0.285 m
- Operating voltage
3 V DC
- Operating current
27 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1695909 Picotronic Laser module Line Red 1 mW LI 635-1-3 (10.5 x 26)-C150-F285
User & Safety Instructions
User & Safety Instructions 1695909 Picotronic Laser module Line Red 1 mW LI 635-1-3 (10.5 x 26)-C150-F285
Information
Information 1695909 Picotronic Laser module Line Red 1 mW LI 635-1-3 (10.5 x 26)-C150-F285
Conformity certificate
Conformity certificate 1695909 Picotronic Laser module Line Red 1 mW LI 635-1-3 (10.5 x 26)-C150-F285
Description
Hints
Class 1: laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
