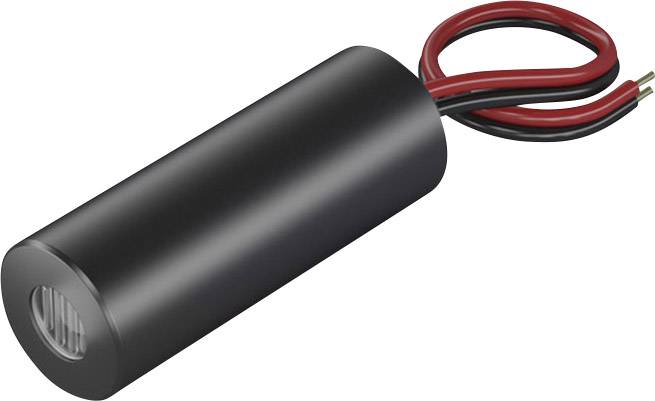

Picotronic Laser module Line Red 2.2 mW LD 635-2. 2-5 (12 x 32)-F1000-C160
Product type
Laser module
Emission characteristics
Line
Wavelength
635 nm
Power
2.2 mW
(Ø)
12 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 87.99 / piece)
€ 87.99
incl. VAT
Only 6 Piece(s) available
Highlights & Details
Insulated line laser, red
- Red
- Laser category: 1
- Emission characteristics: Line
Technical specifications
- Line width:< 1 mm (1 m)
- Product type
Laser module
- Type
LD 635-2. 2-5 (12 x 32)-F1000-C160
- Emission characteristics
Line
- Focus properties
1000 mm fixed-focus
- Factory colour
Red
- Wavelength
635 nm
2.2 mW

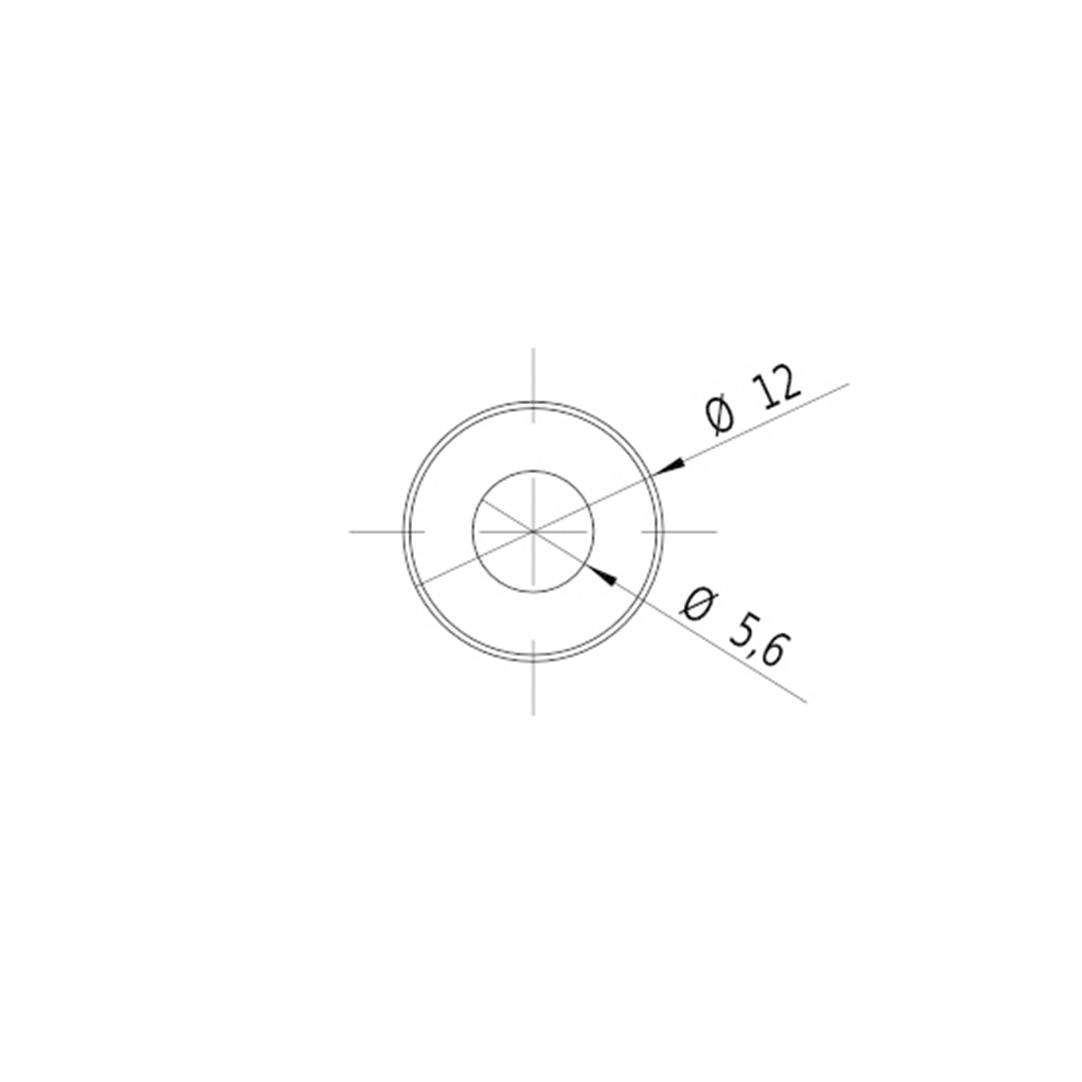

- (Ø)
12 mm
- Length
32 mm
- Laser category
1
- Angular aperture
90°
- Beam divergence
0.5 mrad
- Clearance
1 m
- Operating voltage
5 V DC
- Operating current
35 mA
- Material
Aluminium

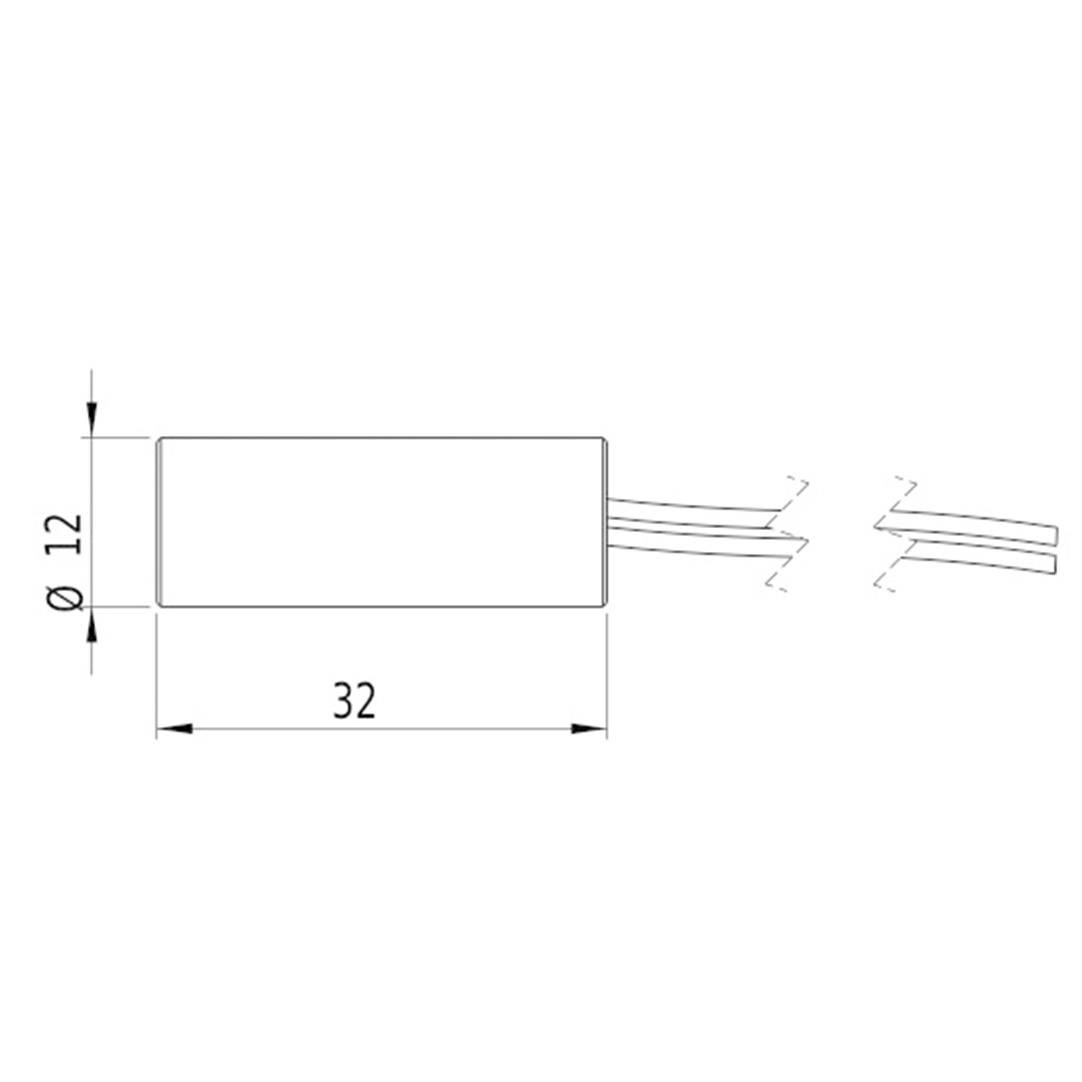

- Dim
(Ø x L) 12 mm x 32 mm
- Weight
18 g
- RoHS-compliant
Yes
- Max. temperature
50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1283416 Picotronic Laser module Line Red 2.2 mW LD 635-2. 2-5 (12 x 32)-F1000-C160
User & Safety Instructions
User & Safety Instructions 1283416 Picotronic Laser module Line Red 2.2 mW LD 635-2. 2-5 (12 x 32)-F1000-C160
Information
Information 1283416 Picotronic Laser module Line Red 2.2 mW LD 635-2. 2-5 (12 x 32)-F1000-C160
Conformity certificate
Conformity certificate 1283416 Picotronic Laser module Line Red 2.2 mW LD 635-2. 2-5 (12 x 32)-F1000-C160
Description
Hints
Laser beam! Observe safety instructions! Never look into the beam (may damage your retina).
