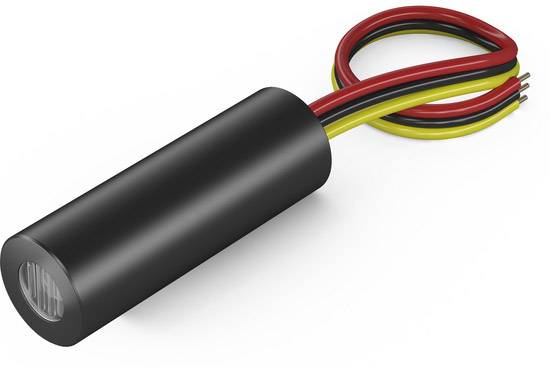

Picotronic Laser module Line Red 24 mW MLH 650-24-5 (16x45)-PL
Product type
Laser module
Emission characteristics
Line
Wavelength
650 nm
Power
24 mW
Laser category
2M
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 329.00 / piece)
€ 329.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Laser module line
- Red
- Laser category: 2M
- Emission characteristics: Line
Technical specifications
- Connection cable 100 mm
- Product type
Laser module
- Type
MLH 650-24-5 (16x45)-PL
- Emission characteristics
Line
- Focus properties
3000 mm fixed-focus
- Factory colour
Red
- Wavelength
650 nm
24 mW
- Laser category
2M
- Angular aperture
90°
- Beam divergence
1.0 mrad
- Clearance
3 m
- Operating voltage
5 V DC
- Operating current
71 mA
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
+50 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 1695845 Picotronic Laser module Line Red 24 mW MLH 650-24-5 (16x45)-PL
User & Safety Instructions
User & Safety Instructions 1695845 Picotronic Laser module Line Red 24 mW MLH 650-24-5 (16x45)-PL
Information
Information 1695845 Picotronic Laser module Line Red 24 mW MLH 650-24-5 (16x45)-PL
Conformity certificate
Conformity certificate 1695845 Picotronic Laser module Line Red 24 mW MLH 650-24-5 (16x45)-PL
Description
Hints
Class 2M: laser radiation! Observe safety instructions! Never look into the beam (may damage your retina).
