Name: Siemens 3VA1225-5EF32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 175 - 250 A Switching voltage (max.): 69
Brand: Siemens
SKU: 1722920
Availability: BackOrder

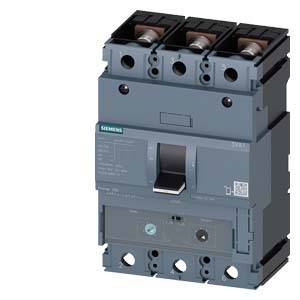

Siemens circuit breaker, three-pole, suitable for interrupting electrical currents.

Technical drawing of an electrical component with four views, including dimensions and detailed views for assembly and connection.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

250 A

Connection

Screws

Packaging type

Piece

Type

3VA1225-5EF32-0AA0

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 949.00 / piece)

€ 949.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Mechanical life: 15000
Electrical life: 8000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.
Power loss: 19 W
Weight: 1,609 kg

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA1225-5EF32-0AA0

Amperage adjustment range (min.): 175 A

Amperage adjustment range (max.): 250 A

Adjustment range (amperage): 175 - 250 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: M

OCR type: TM240

Connection: Screws

: IP40

Depth: 70 mm

Width: 105 mm

Height: 158 mm

Dim: (W x H x D) 105 x 158 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 250 A

: 3

: 175-250 A

: 0

: 690-690 V

: 57 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: 55 kA

: 1250-2500 A

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
