Name: Siemens 3VA1225-6EF42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 175 - 250 A Switching voltage (max.): 69
Brand: Siemens
SKU: 1724192
Availability: BackOrder

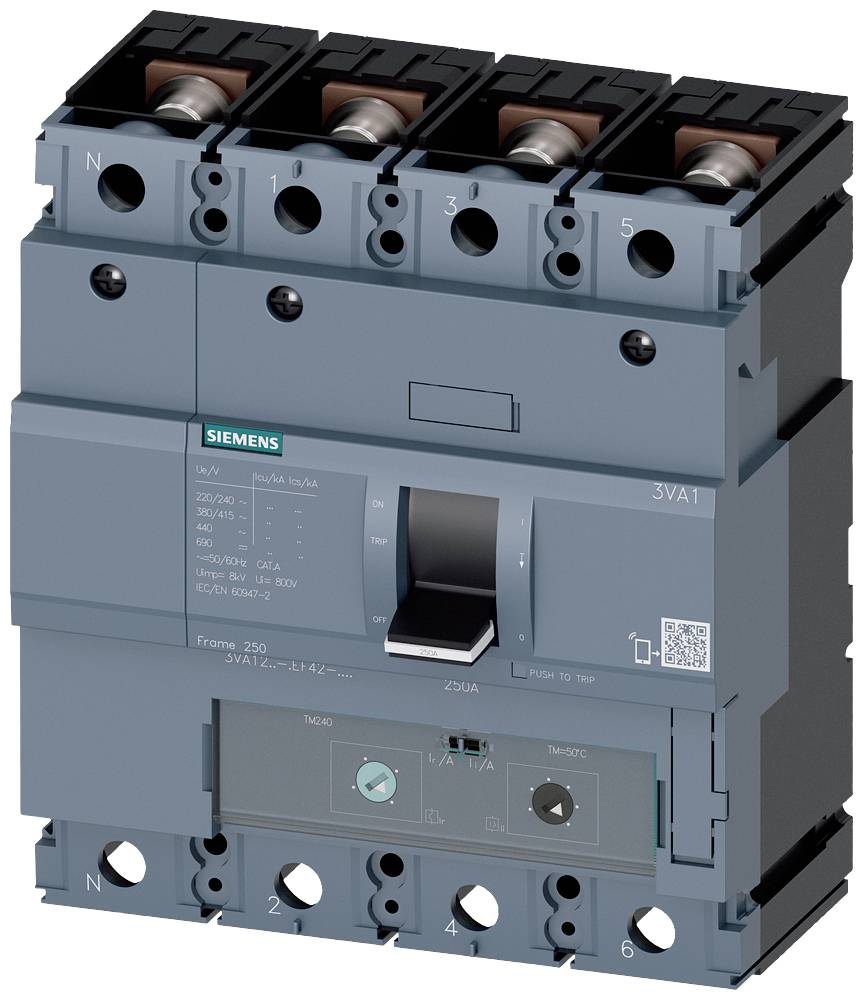

Siemens circuit breaker with four terminals, used for controlling and protecting electrical circuits.

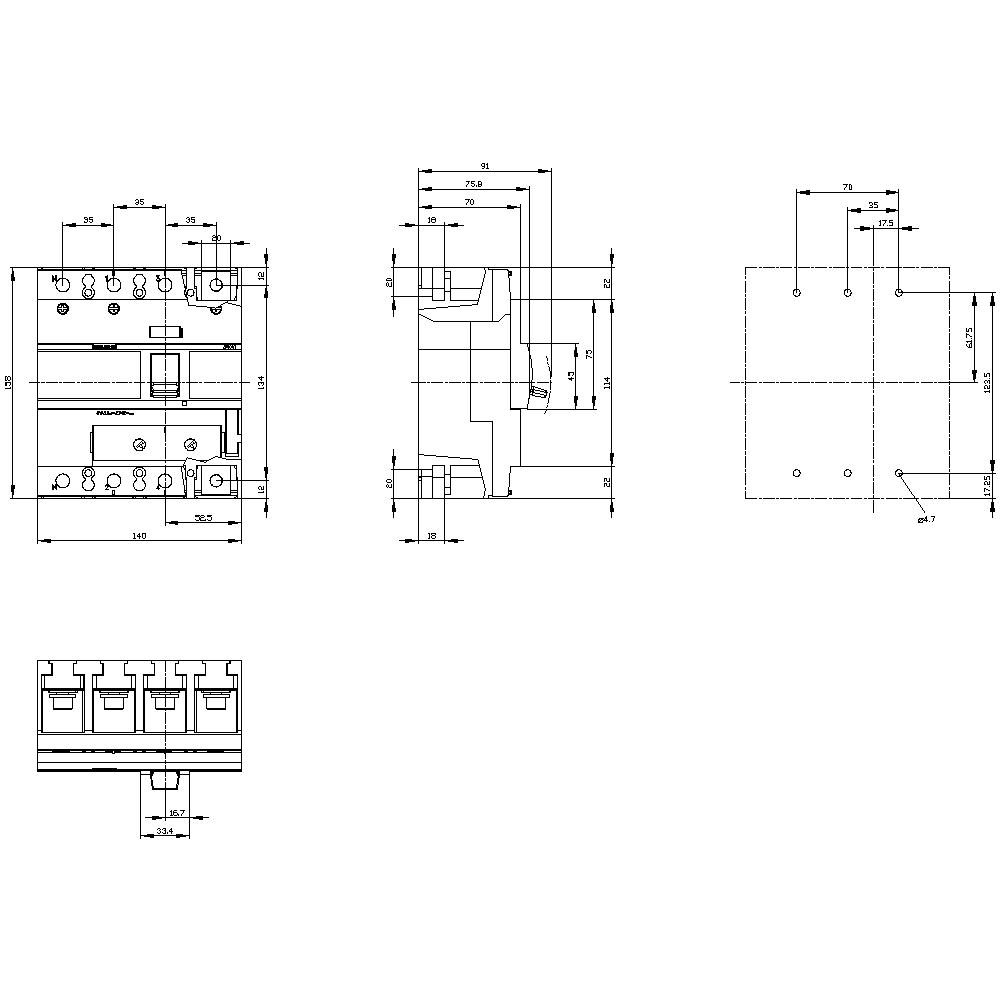

Construction drawing of electrical switches with various views, including front and side elevations, with precise dimensions.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

250 A

Connection

Screws

Packaging type

Piece

Type

3VA1225-6EF42-0AA0

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,429.00 / piece)

€ 1,429.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MCCB_IEC_FS160_100A_3P_70KA_TM_ AM

Our service for you

Technical specifications

Design: System Protection
Mechanical life: 15000
Electrical life: 8000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.
Power loss: 19 W
Weight: 2,084 kg

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA1225-6EF42-0AA0

Amperage adjustment range (min.): 175 A

Amperage adjustment range (max.): 250 A

Adjustment range (amperage): 175 - 250 A

No. of pins: 4-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: H

OCR type: TM240

Connection: Screws

: IP40

Depth: 70 mm

Width: 140 mm

Height: 158 mm

Dim: (W x H x D) 140 x 158 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 250 A

: 4

: 175-250 A

: 0

: 690-690 V

: 57 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: 70 kA

: 1250-2500 A

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: not relevant
