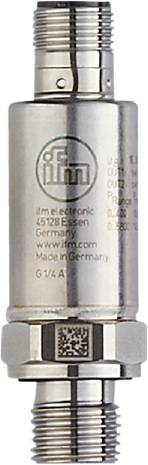

ifm Electronic Pressure switch 1 pc(s) PV7000 0 MPa up to 40 MPa M12 1 breaker, 1 maker
Product type
Pressure switch
Connector
M12
Model
Positive pressure
Pressure reading range (max.)
40 MPa
Max. operating voltage
30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pressure switch
- Type
PV7000
- Connector
M12
- Model
Positive pressure
- Outputs
PNP
NPN
- Interfaces
IO-Link
- Pressure reading range (min.)
0 MPa
- Pressure reading range (max.)
40 MPa
- Pressure reading range
0 MPa up to 40 MPa
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Contact type
1 breaker
1 maker
IP67
- Hose connection
G1/4 AG
M5 IG
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Weight
0.0699 kg
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320067 ifm Electronic Pressure switch 1 pc(s) PV7000 0 MPa up to 40 MPa M12 1 breaker, 1 maker
User & Safety Instructions
User & Safety Instructions 3320067 ifm Electronic Pressure switch 1 pc(s) PV7000 0 MPa up to 40 MPa M12 1 breaker, 1 maker

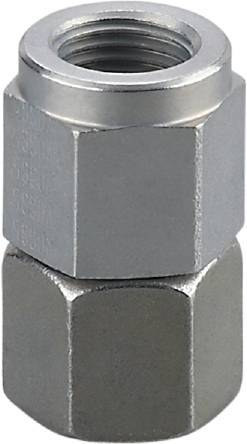

Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
