ifm Electronic Pressure switch 1 pc(s) PV8002 0 MPa up to 10 MPa M12 1 breaker, 1 maker
Product type
Pressure switch
Connector
M12
Model
Relative pressure
Pressure reading range (max.)
10 MPa
Max. operating voltage
30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

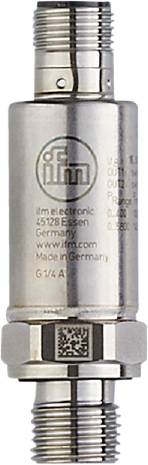

Ifm PV8002 electronic pressure switch
- Compact design for use in narrow installation spaces
- Very high over-pressure and vacuum resistance
- Robust stainless steel housing with high shock and vibration resistance
- Two programmable switching outputs, one with IO-Link communication interface
- Integrated temperature measurement via IO-Link
- Convenient communication and parameterization via IO-Link
Technical specifications
- Reaction dynamics T05/T09 - Temperature monitoring [s]: < 80 / < 210 ( under ifm reference conditions )
- Response time [ms]: < 3
- Number of digital outputs: 2
- Number of inputs and outputs: Number of digital outputs: 2
- Compressive strength [MPa]: 25
- Compressive strength [psi]: 3625
- In steps of [MPa]: 0,001
- IO-Link Revision: 1.1
- Characteristic curve deviation: < ± 0.5; (linearity including hysteresis and repeatability, limit point setting to DIN EN IEC 62828-1)
- Linearity deviation percent range: < ± 0.1 (BFSL) / < ± 0.2 (LS)
- Measuring range [MPa]: 0...10
- Measuring element: Metallic thin film cell
- Min Burst pressure [MPa]: 100
- Return point RP [MPa]: 0.051...9.951
- Switching point SP [MPa]: 0.1...10
- Switching point accuracy span: < ± 0.5 (according to DIN EN 61298-2)
- SDCI standard IEC 61131-9
- Transmission type IO-Link: COM2 (38.4 kBaud)
- Ambient temperature-1 [°C]: -40...90
- Repeatability Percentage range: < ± 0.05; ( < 10 K for temperature fluctuations)
- Tightening torque [Nm]: 25...35; (recommended torque; depending on lubrication, seal and pressure load)
- Application: For industrial use
- Short-circuit protection version: Synchronised
- Output function: NO/NC contact; (can be parameterized)
- Output signal: Switching signal; IO-Link; (configurable)
- Required master port class: A
- Standby delay time [s]: < 0.3
- Operating voltage [V]: 18... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Seal process connection:FKM (DIN EN ISO 1179-2)
- Throttle element present: Yes
- Print: Relative pressure
- Compressive strength [bar]: 250
- Pressure equipment directive: Good engineering practice; suitable for fluid group 2 media; fluid group 1 media on request
- Electrical version: PNP/NPN
- Accuracy - temperature monitoring [K]: ± 2 + (0.1 x (ambient temperature - medium temperature)
- Total number of outputs: 2
- Weight [g]: 56,800
- Information on accuracy / deviation - temperature monitoring: Temperature range -10 to 80 °C.
- Hysteresis deviation: < ± 0.2
- In steps of [bar]: 0.01
- In steps of [psi]: 1
- In steps of - temperature monitoring [°C]: 0.1
- In steps of - temperature monitoring [°F]: 0.1
- IO-Link functions (acyclic): Application-specific marking; internal temperature; operating hours counter; switching cycle counter; pressure peak counter; Temperature peak counter
- IO-Link resolution print [bar]: 0.05
- IO-Link resolution Print [MPa]: 0,005
- IO-Link resolution Temperature [K]: 0.2
- Communication interface: IO-Link
- Short-circuit protection: Yes
- Storage temperature [°C]: -40...100
- Long-term stability: < ± 0.1; (per 6 months)
- max. Voltage drop switch output DC [V]: 2
- Media: Liquid and gaseous media
- Medium temperature [°C]: -40...90
- Measuring range [bar]: 0...100
- Measuring range [psi]: 0...1450
- Measuring range - temperature monitoring [°C]: -40...90
- Measuring range - temperature monitoring [°F]: -40...194
- Min Burst pressure [bar]: 1000
- Min Burst pressure [psi]: 14500
- Min Pressure cycles: 60 million; (at 1.2 times rated pressure)
- Min INSULATION RESISTANCE [MΩ]: 100; (500 V DC)
- Min Process cycle time [ms]: 4.5
- MTTF: 668
- Parameterization options: Hysteresis/window; NO/NC; switching logic; switching/return delay; attenuation
- Profiles: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
- Process connection: Thread connection G 1/4 External thread (DIN EN ISO 1179-2); internal thread:M5
- Analogue process data: 5
- Binary process data: 2
- Return point RP [bar]: 0.51...99.51
- RP [psi] return point: 7...1443
- Return point RP - temperature monitoring [°C]: -40...88
- Return point RP - temperature monitoring [°F]: -40...190.4
- Switching frequency DC [Hz]: < 130
- Switching point SP [bar]: 1...100
- Switching point SP [psi]: 15...1450
- Switching point SP - temperature monitoring [°C]: -38...90
- Switching point SP - temperature monitoring [°F]: -36.4...194
- PROTECTION CLASS IP 67; IP 69K
- Protection class III
- SIO mode: Yes
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 15
- Temperature coefficient Zero point: < 0.1 (-25...90 °C) / < 0.2 (-40...-25 °C)
- Temperature coefficient range: < 0.1 (-25...90 °C) / < 0.2 (-40...-25 °C)
- Overload-proof: Yes
- Vacuum strength [mbar]: -1000
- Reverse polarity protection: Yes
- Materials in contact with the Medium: 1.4305 (stainless steel / 303); 1.4542 (stainless steel / 17-4 PH / 630)
- Product type
Pressure switch
- Type
PV8002
- Connector
M12
- Model
Relative pressure
- Outputs
PNP
NPN
- Interfaces
IO-Link
- Resolution
0.05 bar
- Pressure reading range (min.)
0 MPa
- Pressure reading range (max.)
10 MPa
- Pressure reading range
0 MPa up to 10 MPa
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Contact type
1 breaker
1 maker
- Burst load
1000 bar
- Hose connection
G1/4 AG
M5 IG
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Weight
56.800 g
- Content
1 pc(s)
- UKCA
yes
