ifm Electronic Magneto-inductive flow sensor SM6001 SM6001 Operating voltage (range): 18 - 30 V DC 1 pc(s)
Product type
Magneto-inductive flow sensor
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Type
SM6001
Operating voltage
18 - 30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

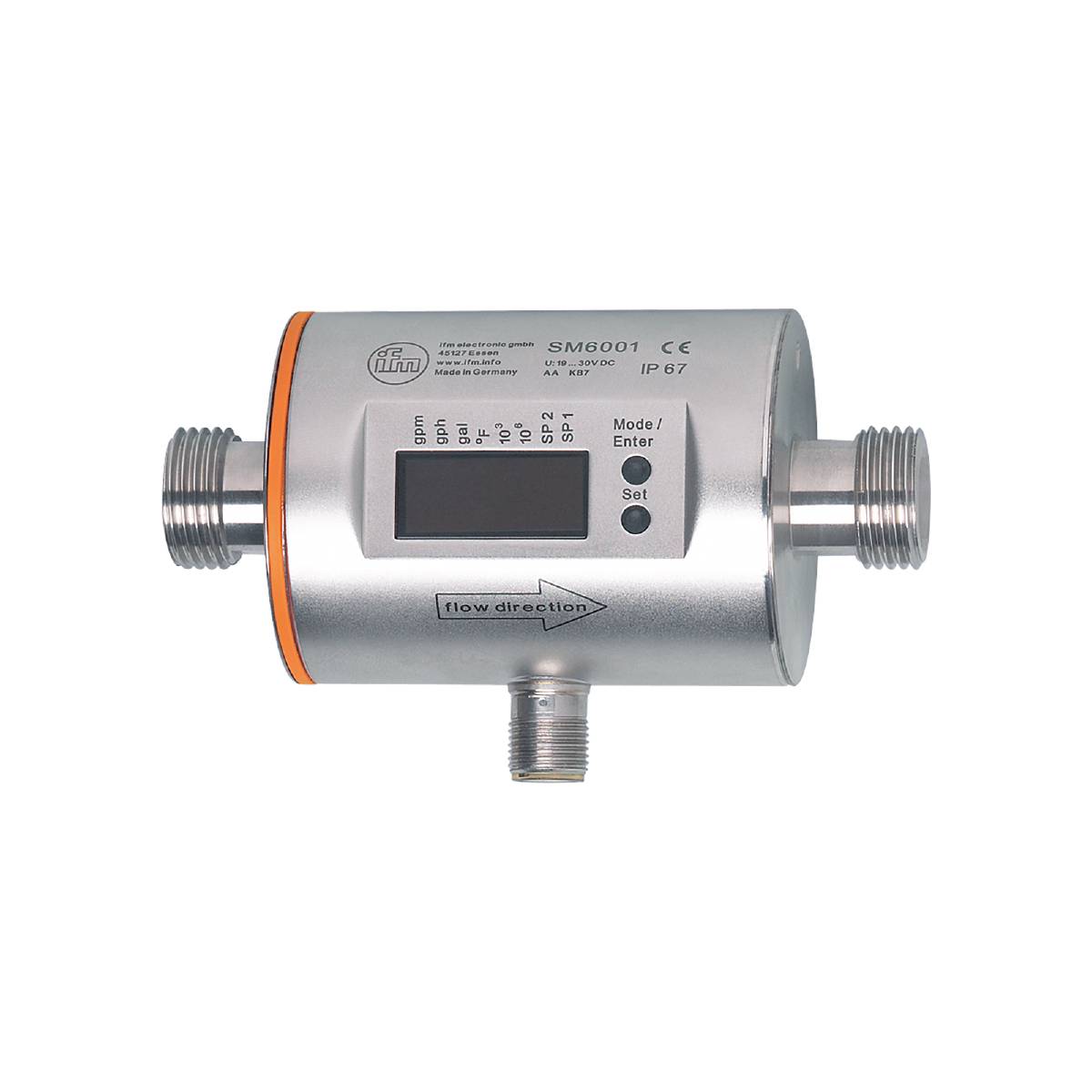

Ifm SM6001 Magnetic Inductive Flow Sensor
- Precise measurement of flow, consumption and medium temperature
- High accuracy, reproducibility and measurement dynamics
- With switch, analogue and pulse output
- Easy-to-read 4-digit LED display
- Convenient operation via keys or parameterization via IO-Link
Technical specifications
- Analog output voltage [V]: 0...10; (scalable)
- Analog output current [mA]: 4...20; (scalable)
- Analog endpoint - temperature monitoring [°F]: 31.5...176
- AEP [gph] analogue endpoint: 78...396
- Analog end point AEP [gpm]: 1.3...6.6
- Analog start point - temperature monitoring [°F]: -4...140.5
- Analog start point ASP [gph]: 0...318
- Analog start point ASP [gpm]: 0...5.3
- Response dynamics T05/T09 - Temperature monitoring [s]: T09 = 20 (Q > 0.26 gpm)
- Response time - current monitoring [s]: 0.15; (DAP = 0, T19)
- Number of analog outputs: 1
- Number of digital outputs: 2
- Number of inputs and outputs: Number of digital outputs: 2; number of analog outputs: 1
- Display: Display unit: 6 x LED, green (gpm, gph, gal, °F, 1000 x 10³); switching state: 2 x LED, yellow; measuring values: alphanumeric display, 4-digit; programming: alphanumeric display, 4 digit
- Display area [gph]: -475.5...475.5
- Display area [gpm]: -7.925...7.925
- Compressive strength range [psi]: 232
- Pulse length - Flow rate monitoring [s]: 0.01...2
- IO-Link Revision: 1.1
- SDCI standard IEC 61131-9
- Transmission type IO-Link: COM2 (38.4 kBaud)
- Application: Totaliser function; for industrial use
- Resolution [gph]: 0.5
- Resolution [gpm]: 0,010
- Resolution - temperature monitoring [°F]: 0.1
- Short-circuit protection version: Synchronised
- Output function: NO/NC contact; (can be parameterized)
- Output signal: Switching signal; analog signal; pulse signal; IO-Link; (configurable)
- Required master port class: A
- Standby delay time [s]: 5
- Special feature: Gold-plated contacts
- Operating voltage [V]: 18...30 DC; (according to SEL/PEL)
- Damping process value DAP - current monitoring [s]: 0...5
- Continuous current carrying capacity of the switching output DC [mA]: 200
- Compressive strength [bar]: 16
- Pressure equipment directive: Good engineering practice; suitable for fluid group 2 media; fluid group 1 media on request
- Inputs: Counter reset
- Adjustable delay time dS, dr - current flow monitoring [s]: 0...50
- Electrical version: PNP/NPN
- Accuracy - temperature monitoring [K]: ± 2.5 (Q > 0.26 gpm)
- Accuracy (within measurement range) - Current monitoring: ± (0.8% MW + 0.5% MEW)
- Total number of outputs: 2
- Weight [g]: 546,000
- Pulse output: Flow meter
- Pulse value - flow rate monitoring: 0.01...30 000 000 gal
- In steps of - temperature monitoring [°F]: 0.5
- Communication interface: IO-Link
- Short-circuit protection: Yes
- Storage temperature [°F]: -13...176
- MAWP for applications according to CRN [bar]: 17.7
- Max. Burden [Ω]: 500
- max. Voltage drop switch output DC [V]: 2
- Media: Conductive Liquid Media; Water; Water-based Media
- Medium temperature [°F]: 14...158
- Measuring range [gph]: 1.5...396
- Measuring range [gpm]: 0.03...6.6
- Measuring range - temperature monitoring [°F]: -4...176
- Min INSULATION RESISTANCE [MΩ]: 100; (500 V DC)
- Min Load resistance [Ω]: 2000
- Min Process cycle time [ms]: 5
- Mounting: Connection to pipe by adapter
- MTTF: 160
- Parameterization options: Flow monitoring; flow meter, preset counter, temperature monitoring, hysteresis / window; NO / NC contact; switching logic; current / voltage / pulse output; start-up bridging time; display switchable; Display unit
- Profile: Smart sensor: Process data variable; device identification, device diagnostics
- Process connection: Thread connection G 1/2 DN15 flat-sealing
- Analogue process data: 3
- Binary process data: 2
- Return point RP [gph]: 1.5...394
- Return point RP [gpm]: 0.03...6.57
- Return point RP - temperature monitoring [°F]: -3.5...175
- Switching point SP [gph]: 3.5...396.5
- Switching point SP [gpm]: 0.06...6.6
- Switching point SP - temperature monitoring [°F]: -2.5...176
- Increment [gph]: 0.5
- Increment [gpm]: 0.01
- IP 67 protection
- Protection class III
- SIO mode: Yes
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
- Power consumption 95; (24 V)
- Overload-proof: Yes
- Ambient temperature [°F]: 14...140
- Reverse polarity protection: Yes
- Materials in contact with the Medium: 1.4404 (stainless steel / 316L); PEEK; FKM
- Repeatability - Current monitoring: ± 0.2% MEW
- Product type
Magneto-inductive flow sensor
- Type
SM6001
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Connector
M12
- Response time
0.15 s
- Outputs
PNP
NPN
- Material
Stainless steel
- Sealant
FKM
- Max. operating pressure
16 bar
- Weight
546.000 g
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
