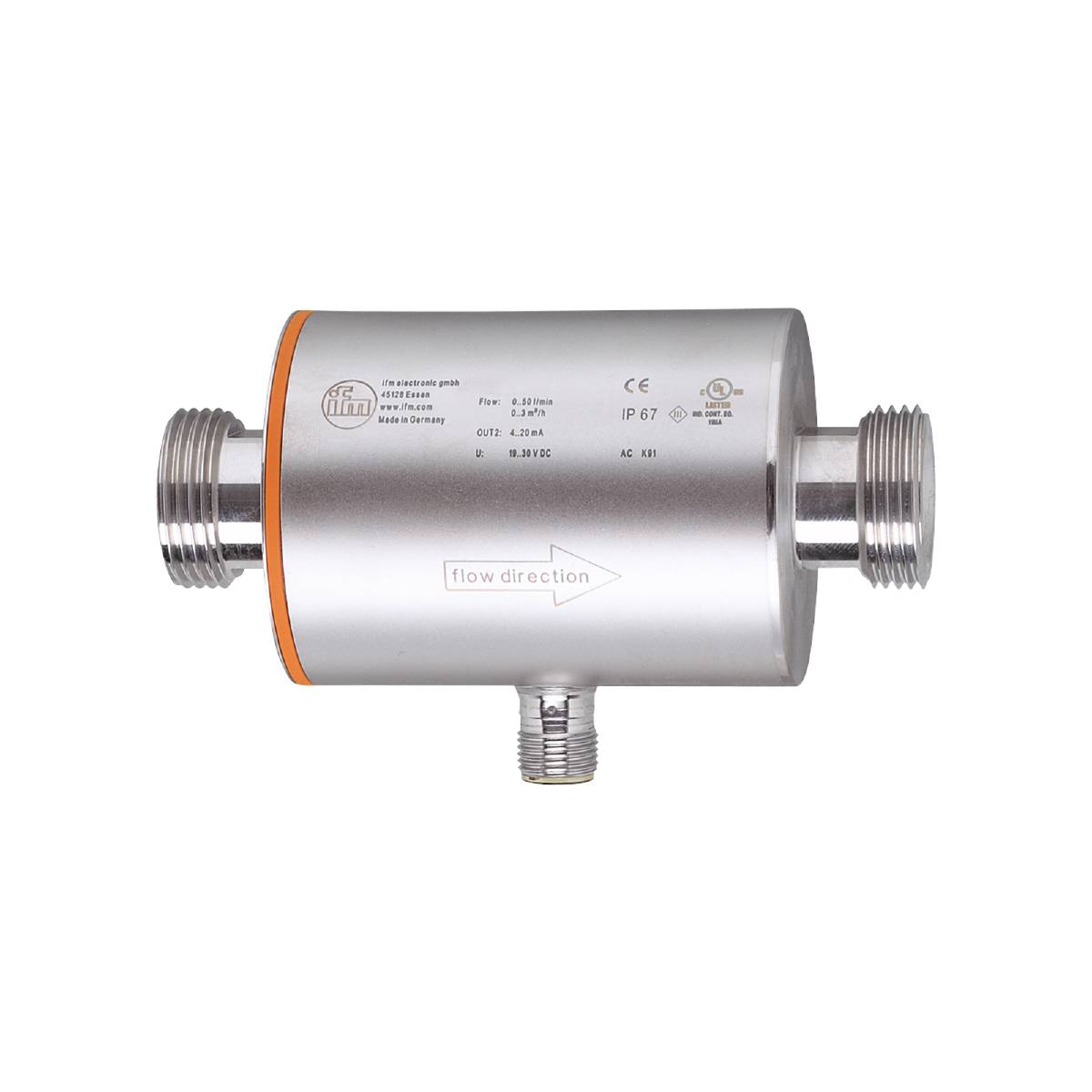

Image similar
ifm Electronic Magneto-inductive flow sensor SM7050 SM7050 Operating voltage (range): 18 - 30 V DC Reading range: 0.2 -
Product type
Magneto-inductive flow sensor
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Reading range (max.)
50 l/min
Type
SM7050
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm SM7050 Magnetic Inductive Flow Sensor
- Precise measurement of flow and medium temperature
- High accuracy, reproducibility and measurement dynamics
- With analog output and IO-Link interface
- Convenient communication and parameterization via IO-Link
Technical specifications
- Analog output current [mA]: 4...20
- Response time - current monitoring [s]: 0.15; (DAP = 0, T19)
- Number of analog outputs: 1
- Number of inputs and outputs: Number of analog outputs: 1
- Compressive strength [MPa]: 1.6
- IO-Link Revision: 1.1
- SDCI standard IEC 61131-9
- Transmission type IO-Link: COM2 (38.4 kBaud)
- Ambient temperature-1 [°C]: -10...60
- Application: For industrial use
- Output signal: Analog signal; IO-Link; (configurable)
- Required master port class: A
- Standby delay time [s]: 5
- Special feature: Gold-plated contacts
- Operating voltage [V]: 18...30 DC; (according to SEL/PEL)
- Continuous current carrying capacity of the switching output DC [mA]: 250
- Compressive strength [bar]: 16
- Pressure equipment directive: Good engineering practice; suitable for fluid group 2 media; fluid group 1 media on request
- Accuracy (within measurement range) - Current monitoring: ± (0.8% MW + 0.5% MEW)
- Total number of outputs: 1
- Weight [g]: 517,550
- Communication interface: IO-Link
- Storage temperature [°C]: -25...80
- MAWP for applications according to CRN [bar]: 11.2
- Max. Burden [Ω]: 500
- Media: Conductive Liquid Media; Water; Water-based Media
- Medium temperature [°C]: -10...70
- Measuring range [l / min]: 0.2...50
- Min Process cycle time [ms]: 3
- Mounting: Connection to pipe by adapter
- MTTF: 145
- Profile: Smart sensor: Process data variable; device identification, device diagnostics
- Process connection: Thread connection G 3/4 DN20 flat-sealing
- Analogue process data: 2
- IP 67 protection
- Protection class III
- SIO mode: Yes
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
- Power consumption 95; (24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Materials in contact with the Medium: 1.4404 (stainless steel / 316L); PEEK; FKM
- Repeatability - Current monitoring: ± 0.2% MEW
- Product type
Magneto-inductive flow sensor
- Type
SM7050
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Connector
M12
- Response time
0.15 s
- Outputs
Analogue
- Material
Stainless steel
- Sealant
FKM
- Nominal diameter
20 mm
- Media temperature (min.)
-10 °C
- Max. media temperature
70 °C
- Max. operating pressure
16 bar
- Reading range (min.)
0.2 l/min
- Reading range (max.)
50 l/min
- Reading range
0.2 - 50 l/min
- Contact type
Analogue
- Weight
517.550 g
- Min. ambient temperature
-10 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
