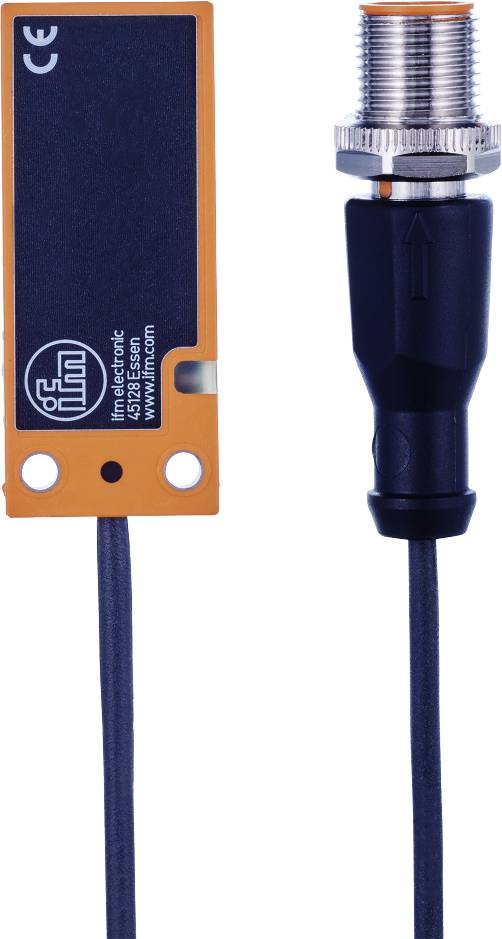

ifm Electronic Sensor Capacitive KQ5101 KQ5101 non-shielded PNP
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 breaker
1 maker
Outputs
PNP
Model
Capacitive
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm KQ5101 capacitive sensor
- Output function NO / NC programmable
- LED status indicator is highly visible
- Easy mounting using built-in adapters and straps
- For position detection or level monitoring
- Simple parameterization via IO-Link
Technical specifications
- Dimensions [mm] 20 x 7 x 48
- Display: Switch status 1 x LED, yellow
- IO-Link Revision: 1.1
- Level measuring principle: Capacitive
- SDCI STANDARD IEC 61131-9 CDV
- Transmission type IO-Link: COM1 (4.8 kBaud)
- Ambient temperature-1 [°C]: -25...80
- Output function: NO / NC; (selectable)
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Built: Not flush-mounted
- Electrical version: PNP
- Housing: Square
- Weight [g]: 27,400
- Hysteresis: 1...15
- Cable: Plug - cable: 0.1 m, PUR, Ø 2.9 mm
- Communication interface: IO-Link
- Short-circuit protection: Yes
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 771
- Parameterization options: Only via IO-Link
- Profile Smart sensor
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 12 ± 10 %
- Switching distance [mm]: 12
- Switching frequency DC [Hz]: 10
- Switch point drift: -20...20
- PROTECTION CLASS IP 65; IP 67; IP 69K
- Protection class III
- SIO mode: Yes
- Plug connection: Plug - pin layout: 0061 - plug connection: 1 x M12; coding: A.
- Current consumption: < 17
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
KQ5101
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 breaker
1 maker
- Outputs
PNP
- Model
Capacitive
- Installation type
non-shielded
- Connector
M12
- Cable length
0.1 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318228 ifm Electronic Sensor Capacitive KQ5101 KQ5101 non-shielded PNP
User & Safety Instructions
User & Safety Instructions 3318228 ifm Electronic Sensor Capacitive KQ5101 KQ5101 non-shielded PNP
Description
Ifm KQ5101 capacitive sensor
This text is machine translated.
This text is machine translated.
What kind of Proximity Sensors are you looking for?

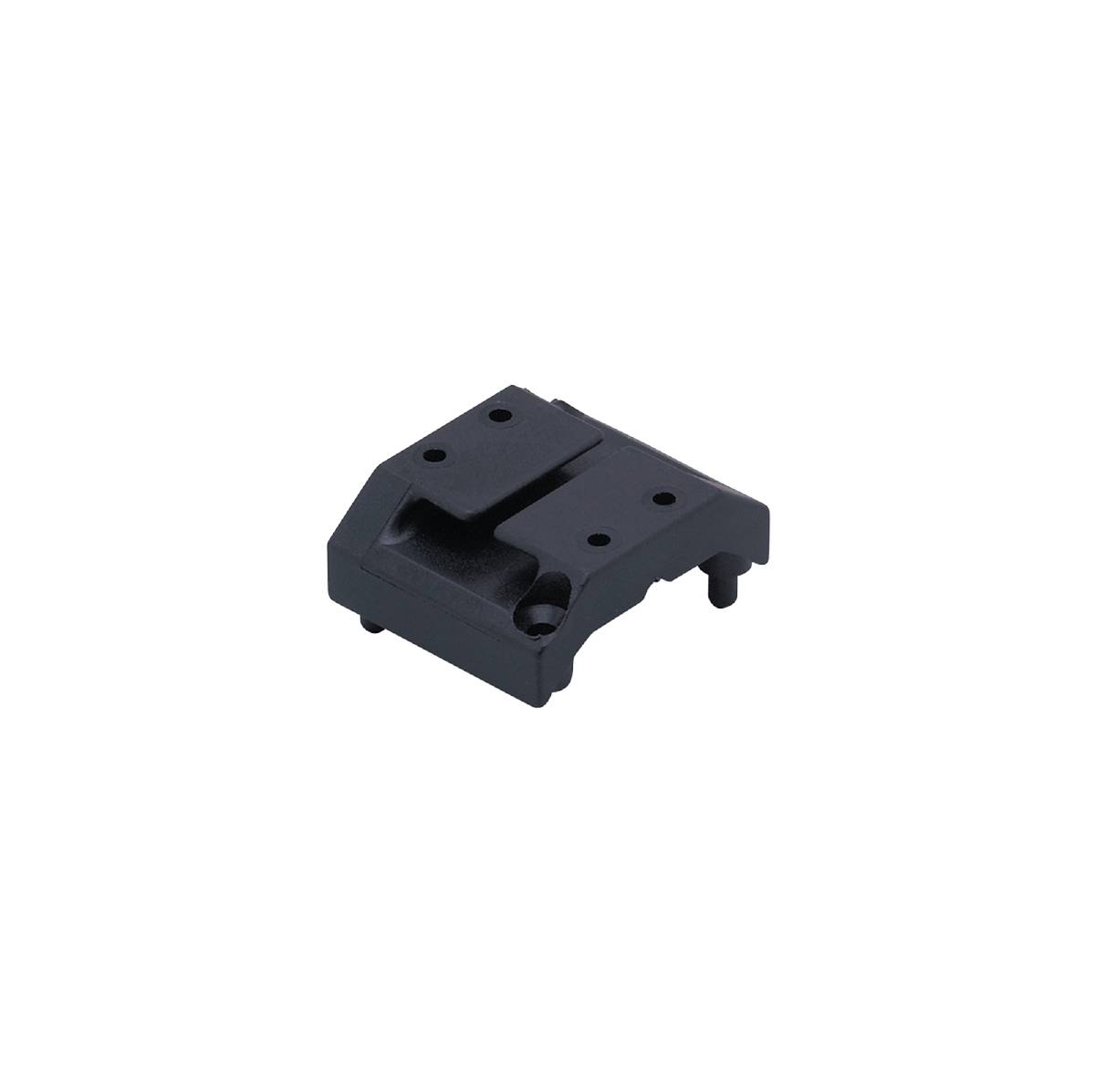

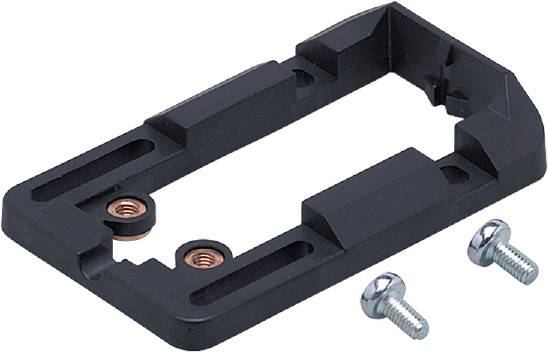

Accessories
