Name: Siemens 3VA2040-7KQ36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 16 - 40 A Switching voltage (max.): 690
Brand: Siemens
SKU: 1749641
Availability: BackOrder

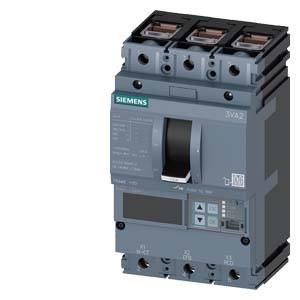

A grey Siemens performance circuit breaker, model 3VA2, with multiple connections at the top and bottom, suitable for industrial applications.

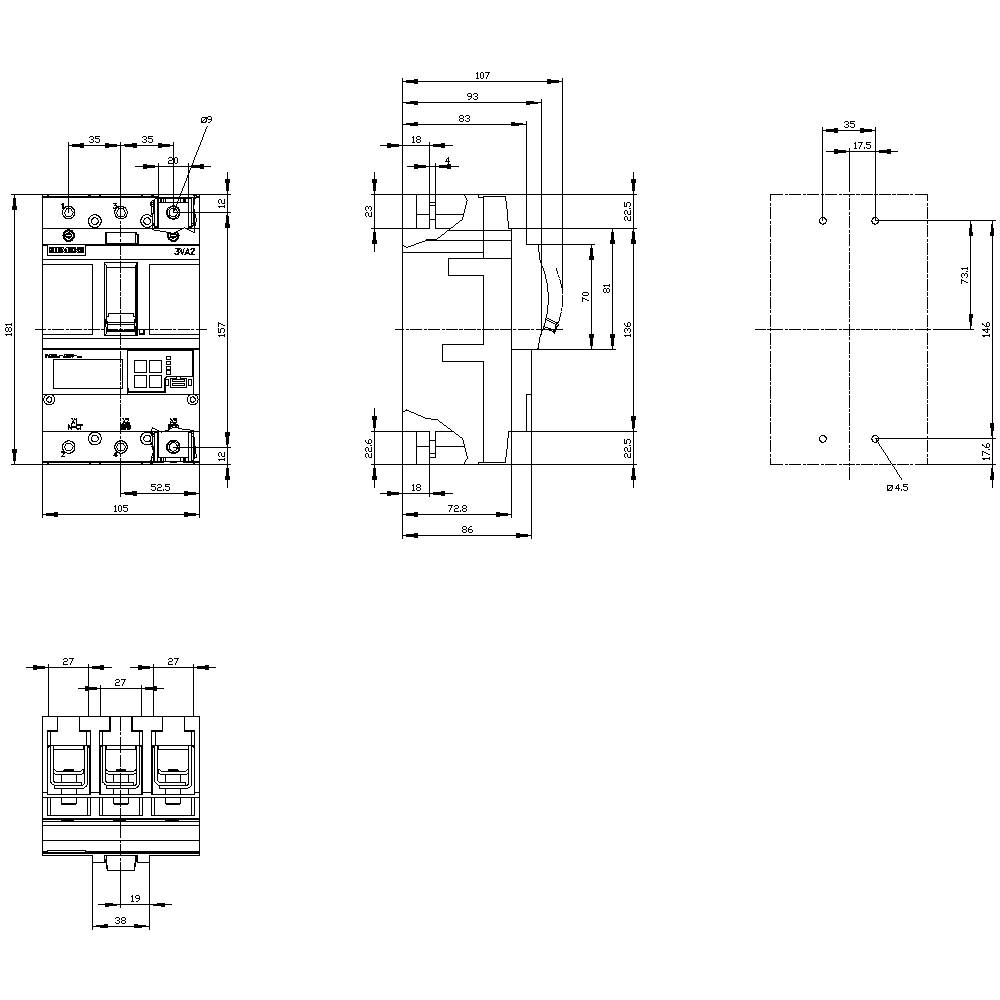

Technical drawing of various views of an electrical switch with precise dimensional specifications, showing dimensions and layout.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

40 A

Connection

Clamp

Packaging type

Piece

Type

3VA2040-7KQ36-0AA0

Datasheet (PDF)

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,619.00 / piece)

€ 1,619.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MCCB_IEC_FS100_40A_3P_110KA_ETU3_LSI

Our service for you

Technical specifications

Design: System Protection
Power loss: 2.2 W
Weight: 2.45 kg
Mechanical life: 20000
Electrical life: 14000
Isolation voltage: 800 V

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA2040-7KQ36-0AA0

Amperage adjustment range (min.): 16 A

Amperage adjustment range (max.): 40 A

Adjustment range (amperage): 16 - 40 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: C

OCR type: ETU860

Connection: Clamp

: IP40

Depth: 86 mm

Width: 105 mm

Height: 181 mm

Dim: (W x H x D) 105 x 181 x 86 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 40 A

: 3

: 0

: 1.2 W

: IP40

: Front side

: FALSE

: Frame clamp

: Rocker lever

: FALSE

: 110 kA

: TRUE

: TRUE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: not relevant
