Name: Siemens 3VA2063-8JQ32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 63 A Switching voltage (max.): 690
Brand: Siemens
SKU: 1745278
Availability: BackOrder

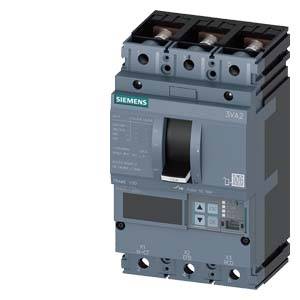

A three-pole Siemens 3VA2 circuit breaker for protecting electrical circuits against overload and short circuit.

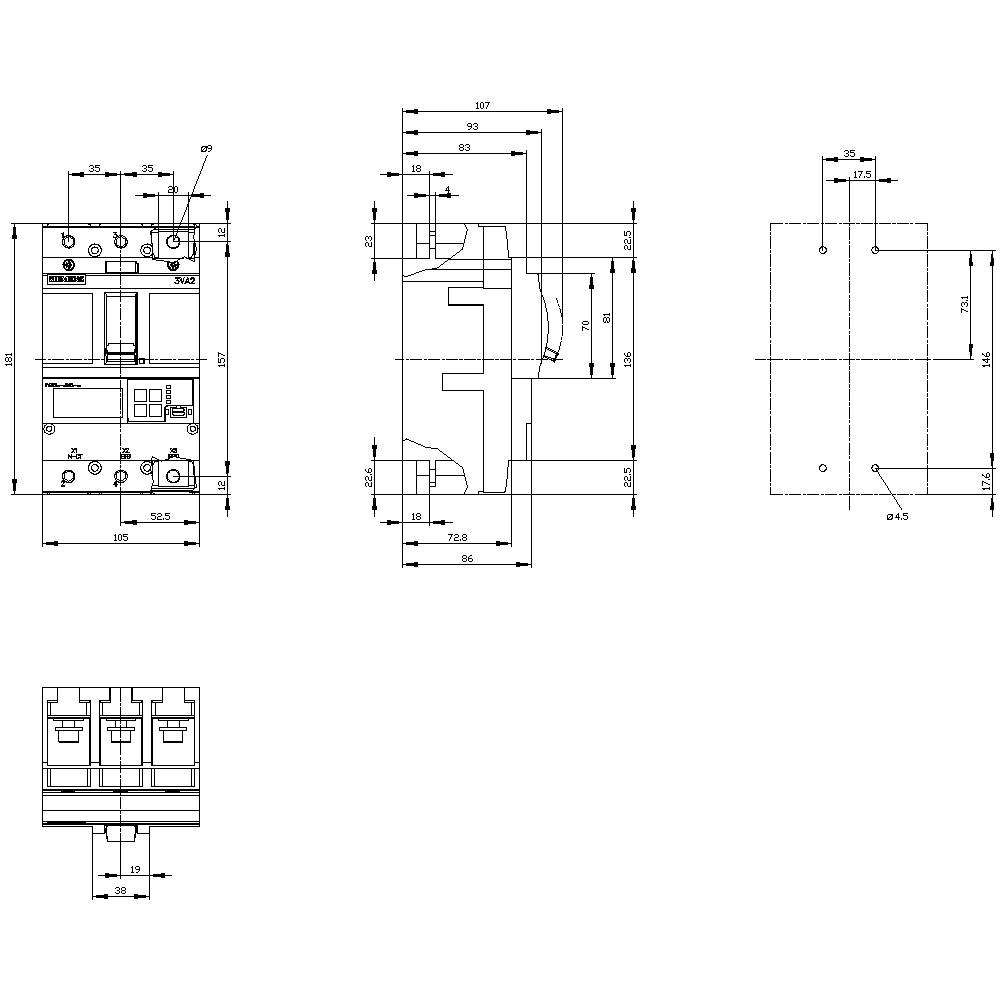

Technical drawing of a three-phase circuit breaker with front view, side view and dimensions shown in millimetres.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

63 A

Connection

Screws

Packaging type

Piece

Type

3VA2063-8JQ32-0AA0

Datasheet (PDF)

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,599.00 / piece)

€ 1,599.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MCCB_IEC_FS160_100A_3P_85KA_ETU3_ ELISA

Our service for you

Technical specifications

Design: System Protection
Power loss: 3 W
Weight: 2.29 kg
Mechanical life: 20000
Electrical life: 14000
Isolation voltage: 800 V

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA2063-8JQ32-0AA0

Amperage adjustment range (min.): 25 A

Amperage adjustment range (max.): 63 A

Adjustment range (amperage): 25 - 63 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: L

OCR type: ETU560

Connection: Screws

: IP40

Depth: 86 mm

Width: 105 mm

Height: 181 mm

Dim: (W x H x D) 105 x 181 x 86 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 63 A

: 3

: 0

: 3 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 150 kA

: TRUE

: TRUE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: not relevant
