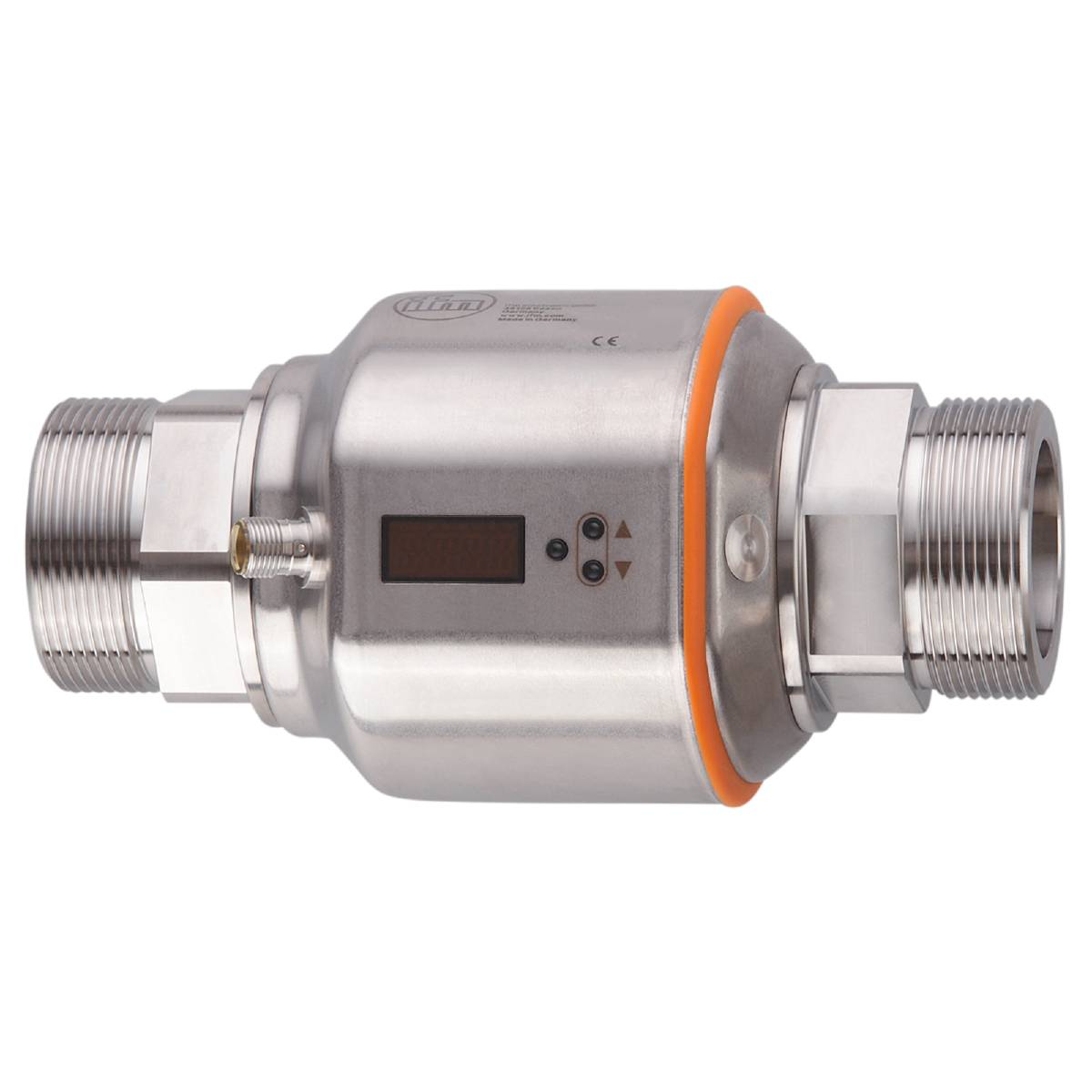

ifm Electronic Magneto-inductive flow sensor SM2000 SM2000 Operating voltage (range): 18 - 32 V DC 1 pc(s)
Product type
Magneto-inductive flow sensor
Min. operating voltage
18 V DC
Max. operating voltage
32 V DC
Packaging type
Piece
Type
SM2000
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Magneto-inductive flow sensor
- Type
SM2000
- Min. operating voltage
18 V DC
- Max. operating voltage
32 V DC
- Operating voltage
18 - 32 V DC
- Connector
M12
- Response time
0.35 s
- Outputs
PNP
NPN
- Material
Stainless steel
- Sealant
FKM
- Enclosure material
Stainless steel V4A
- Media temperature (min.)
-10 °C
- Max. media temperature
90 °C
- Max. operating pressure
16 bar
- Contact type
Antivalent
IP65/67
- Weight
3.2000 kg
- Min. ambient temperature
-10 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
