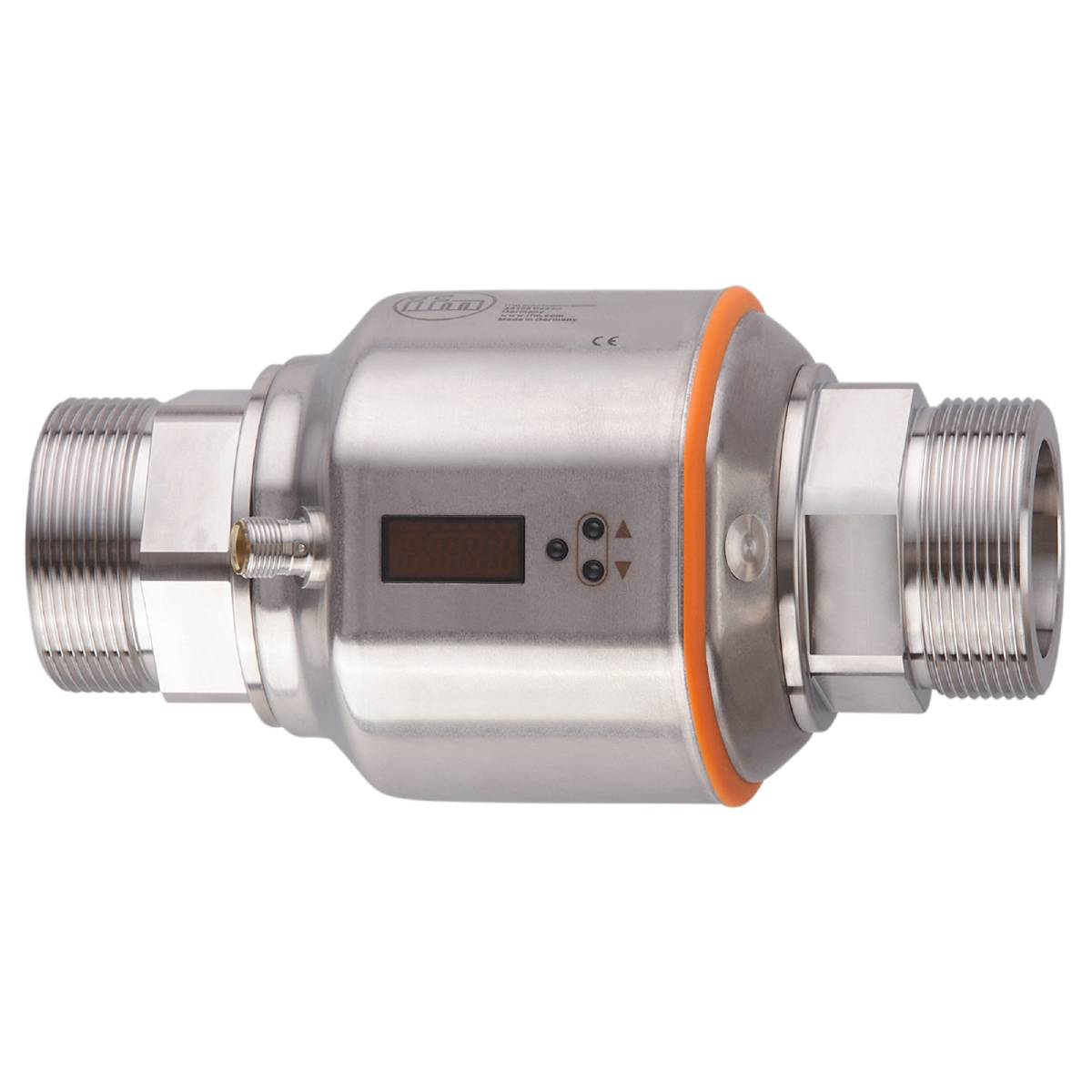

ifm Electronic Magneto-inductive flow sensor SM2100 SM2100 Operating voltage (range): 18 - 32 V DC 1 pc(s)
Product type
Magneto-inductive flow sensor
Min. operating voltage
18 V DC
Max. operating voltage
32 V DC
Type
SM2100
Operating voltage
18 - 32 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Magneto-inductive flow sensor
- Type
SM2100
- Min. operating voltage
18 V DC
- Max. operating voltage
32 V DC
- Operating voltage
18 - 32 V DC
- Features
LED indicator
- Connector
M12
- Response time
0.35 s
- Outputs
PNP
NPN
- Material
Stainless steel
- Sealant
EPDM
- Media temperature (min.)
-10 °C
- Max. media temperature
90 °C
- Max. operating pressure
16 bar
- Accuracy ±
0.8 %
- Weight
3163.000 g
- Min. ambient temperature
-10 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3321921 ifm Electronic Magneto-inductive flow sensor SM2100 SM2100 Operating voltage (range): 18 - 32 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321921 ifm Electronic Magneto-inductive flow sensor SM2100 SM2100 Operating voltage (range): 18 - 32 V DC 1 pc(s)
