Name: Siemens 3VA2063-6JQ46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 63 A Switching voltage (max.): 690
Brand: Siemens
SKU: 1745274
Availability: BackOrder

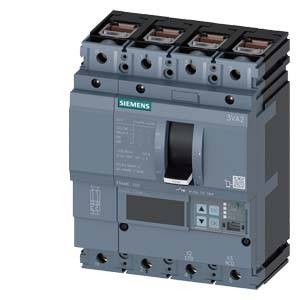

A Siemens industrial protective switch in four-pole configuration, suitable for electronic installations in buildings.

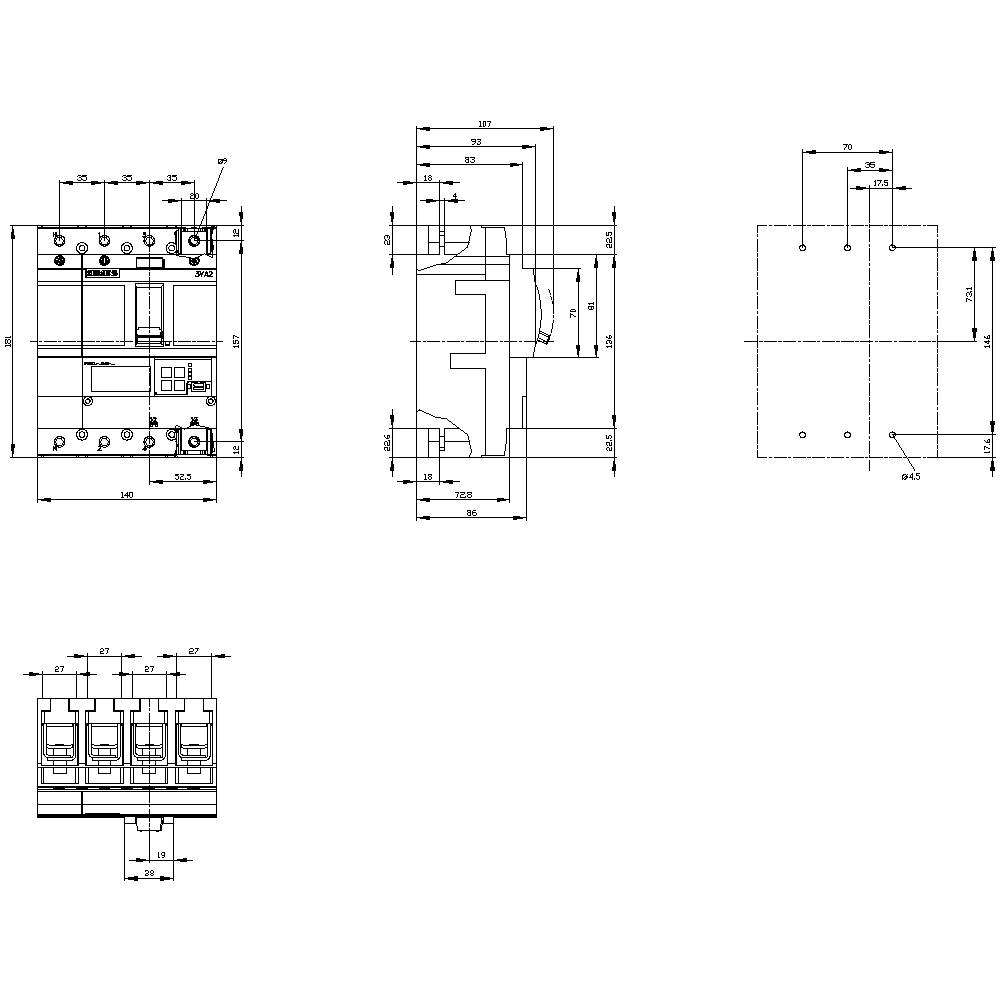

Technical drawing of an electrical switch with dimensions and views from the front, side, and top. Main components and dimensions are shown.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

63 A

Connection

Clamp

Packaging type

Piece

Type

3VA2063-6JQ46-0AA0

Datasheet (PDF)

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,645.00 / piece)

€ 1,645.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Power loss: 5.4 W
Weight: 3.14 kg
Mechanical life: 20000
Electrical life: 14000
Isolation voltage: 800 V

Packaging type: Piece

Product type: Circuit breaker

Type: 3VA2063-6JQ46-0AA0

Amperage adjustment range (min.): 25 A

Amperage adjustment range (max.): 63 A

Adjustment range (amperage): 25 - 63 A

No. of pins: 4-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: H

OCR type: ETU560

Connection: Clamp

: IP40

Depth: 86 mm

Width: 140 mm

Height: 181 mm

Dim: (W x H x D) 140 x 181 x 86 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 63 A

: 4

: 0

: 5.4 W

: IP40

: Front side

: FALSE

: Frame clamp

: Rocker lever

: FALSE

: 85 kA

: TRUE

: TRUE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
