Name: Siemens 3VA2225-8KQ42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 250 A Switching voltage (max.): 69
Brand: Siemens
SKU: 1743276
Availability: BackOrder

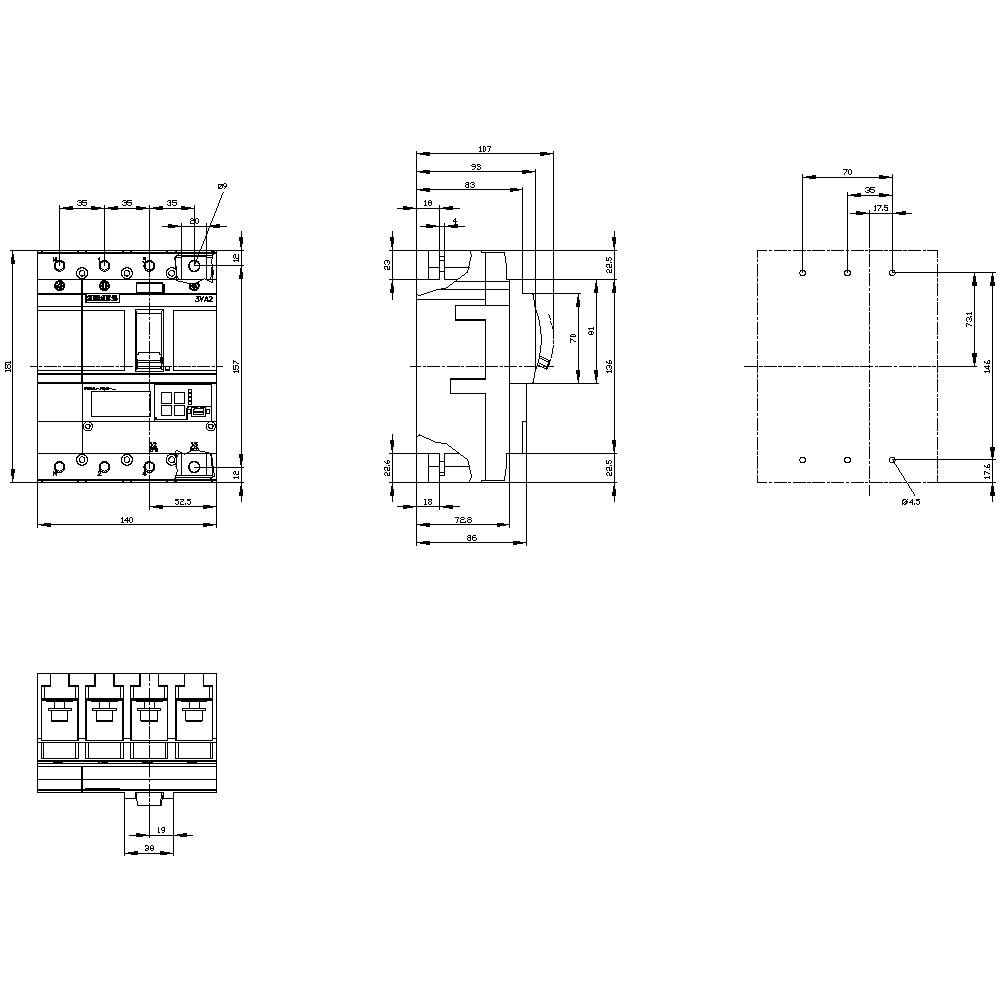

Technical drawing of a device with various views and dimensional specifications, showing front, side, and rear views, along with component details.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

250 A

Connection

Screws

Type

3VA2225-8KQ42-0AA0

Amperage adjustment range (min.)

100 A

Datasheet (PDF)

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,579.00 / piece)

€ 3,579.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Power loss: 48 W
Weight: 3.1 kg
Mechanical life: 20000
Electrical life: 10000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3VA2225-8KQ42-0AA0

Amperage adjustment range (min.): 100 A

Amperage adjustment range (max.): 250 A

Adjustment range (amperage): 100 - 250 A

No. of pins: 4-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: L

OCR type: ETU860

Connection: Screws

: IP40

Depth: 86 mm

Width: 140 mm

Height: 181 mm

Dim: (W x H x D) 140 x 181 x 86 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 250 A

: 4

: 0

: 48 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 150 kA

: TRUE

: TRUE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
