Name: Siemens 3VA1110-3ED42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 100 A Switching voltage (max.): 69
Brand: Siemens
SKU: 1734272
Availability: BackOrder

A grey Siemens power switch with four terminals and a central switch, featuring technical details on the front panel.

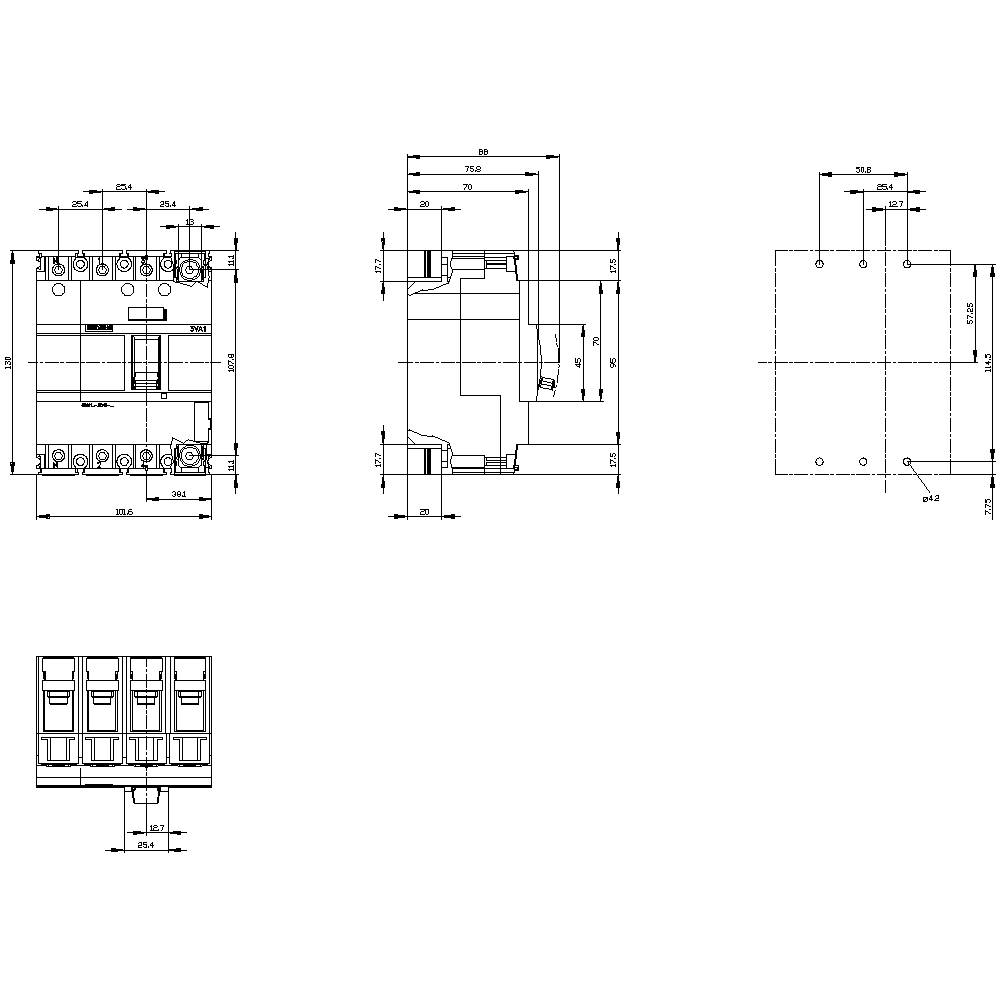

Technical drawing of an electrical device with dimensions. Shows 3 views of the device; front, side and top view.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

100 A

Connection

Screws

Type

3VA1110-3ED42-0AA0

Amperage adjustment range (min.)

100 A

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 445.00 / piece)

€ 445.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Power loss: 8.33 W
Weight: 1.2 kg
Mechanical life: 20000
Electrical life: 8000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3VA1110-3ED42-0AA0

Amperage adjustment range (min.): 100 A

Amperage adjustment range (max.): 100 A

Adjustment range (amperage): 100 - 100 A

No. of pins: 4-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: N

OCR type: TM210

Connection: Screws

: IP40

Depth: 70 mm

Width: 101.6 mm

Height: 130 mm

Dim: (W x H x D) 101.6 x 130 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 100 A

: 4

: 100-100 A

: 0

: 690-690 V

: 25 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: 25 kA

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
