Name: Siemens 3VA1140-5EF42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 28 - 40 A Switching voltage (max.): 690
Brand: Siemens
SKU: 1723897
Availability: BackOrder

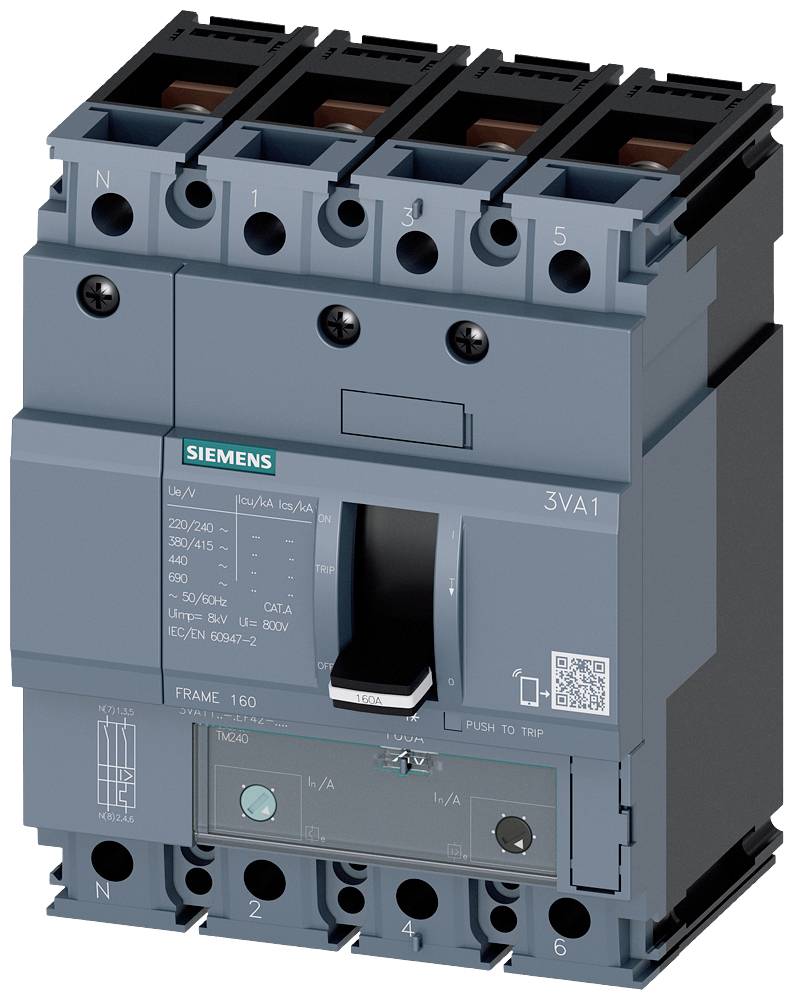

'Siemens 3VA1 Circuit Breaker, 3-pole, 160A, with On/Off Switch. Housing dark grey, for electrical protection applications.'

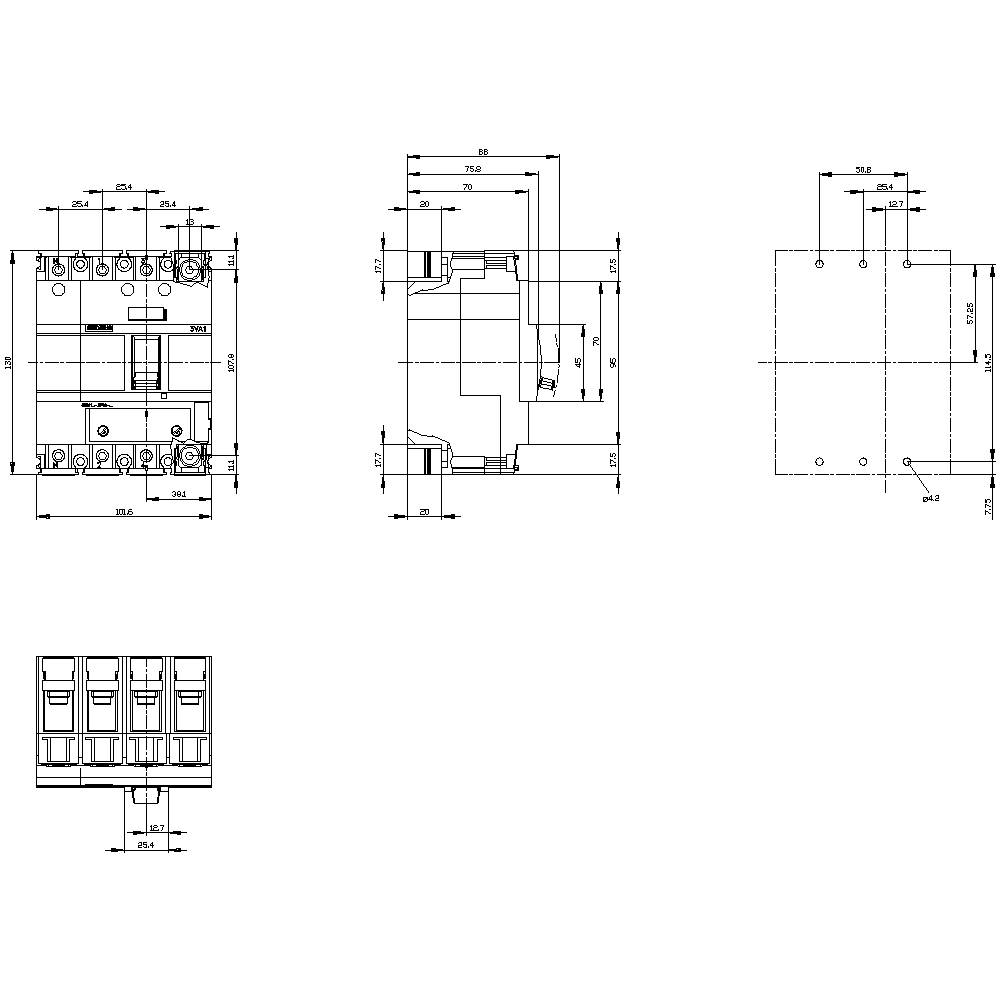

'Technical drawing of a four-pole switch with detailed measurements in millimetres. Front, side, and rear views shown.'

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

40 A

Connection

Screws

Type

3VA1140-5EF42-0AA0

Amperage adjustment range (min.)

28 A

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 415.00 / piece)

€ 415.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MCCB_IEC_FS160_40A_4P_55KA_TM_ FTFM

Our service for you

Technical specifications

Design: System Protection
Mechanical life: 20000
Electrical life: 8000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.
Power loss: 3.6 W
Weight: 1.2 kg

Product type: Circuit breaker

Type: 3VA1140-5EF42-0AA0

Amperage adjustment range (min.): 28 A

Amperage adjustment range (max.): 40 A

Adjustment range (amperage): 28 - 40 A

No. of pins: 4-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens 3VA series

Compatible with: Siemens

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: M

OCR type: TM240

Features: + auxiliary contact

Connection: Screws

: IP40

Depth: 70 mm

Width: 101.6 mm

Height: 130 mm

Dim: (W x H x D) 101.6 x 130 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 40 A

: 4

: 28-40 A

: 0

: 690-690 V

: 10.8 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: 55 kA

: 200-400 A

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3VA1125-5EF42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722589

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 415.00^*

Siemens 3VA1125-5EF46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm Piece

Item no:1722590

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 525.00^*

Siemens 3VA1125-5GD42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722591

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Siemens 3VA1125-5GD46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm Piece

Item no:1722592

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Siemens 3VA1125-5GF42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722593

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 499.00^*

Siemens 3VA1125-5GF46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722594

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Siemens 3VA1125-6ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1722595

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 329.00^*

Siemens 3VA1125-6ED36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm Piece

Item no:1722596

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 359.00^*

Siemens 3VA1125-6ED42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 25 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1722597

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Siemens 3VA1125-6EE36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 18 - 25 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm Piece

Item no:1722598

Dispatches on Thu 22 Oct

Conrad Electronic

25 A

18 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 395.00^*

Documents & Downloads

Datasheet

Datasheet 1723897 Siemens 3VA1140-5EF42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 28 - 40 A Switching voltage (max.): 690

User & Safety Instructions

User & Safety Instructions 1723897 Siemens 3VA1140-5EF42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 28 - 40 A Switching voltage (max.): 690

Description

circuit breaker 3VA1 IEC frame 160 breaking capacity class M Icu=55kA @ 415 V 4-pole, line protection TM210, ftfm, In=40A overload protection ir=40A fixed short circuit protection iI=10 x In neutral protection 100% busbar connection
