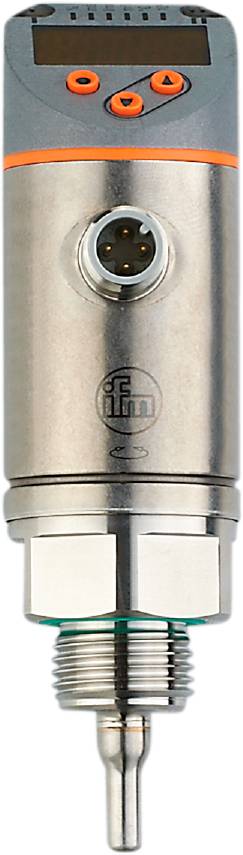

ifm Electronic Flow sensor SA2000 SA2000 Operating voltage (range): 18 - 30 V DC 1 pc(s)
Product type
Flow sensor
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Type
SA2000
Operating voltage
18 - 30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Flow sensor
- Type
SA2000
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Features
LED indicator
- Connector
M12
- Response time
0.5 s
- Outputs
PNP
NPN
- Material
Stainless steel
- Sealant
FKM
- Enclosure material
Stainless steel
- Media temperature (min.)
-20 °C
- Max. media temperature
90 °C
- Max. operating pressure
100 bar
- Weight
270.000 g
- Min. ambient temperature
-40 °C
- Max. ambient temperature
80 °C
- Length
19.2 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3321077 ifm Electronic Flow sensor SA2000 SA2000 Operating voltage (range): 18 - 30 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321077 ifm Electronic Flow sensor SA2000 SA2000 Operating voltage (range): 18 - 30 V DC 1 pc(s)
