Name: Siemens 3VA1112-5EF36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 88 - 125 A Switching voltage (max.): 690
Brand: Siemens
SKU: 1738444
Availability: BackOrder

A three-pole Siemens circuit breaker, Model 3VA1, for industrial applications, shown from the front with the switch visible.

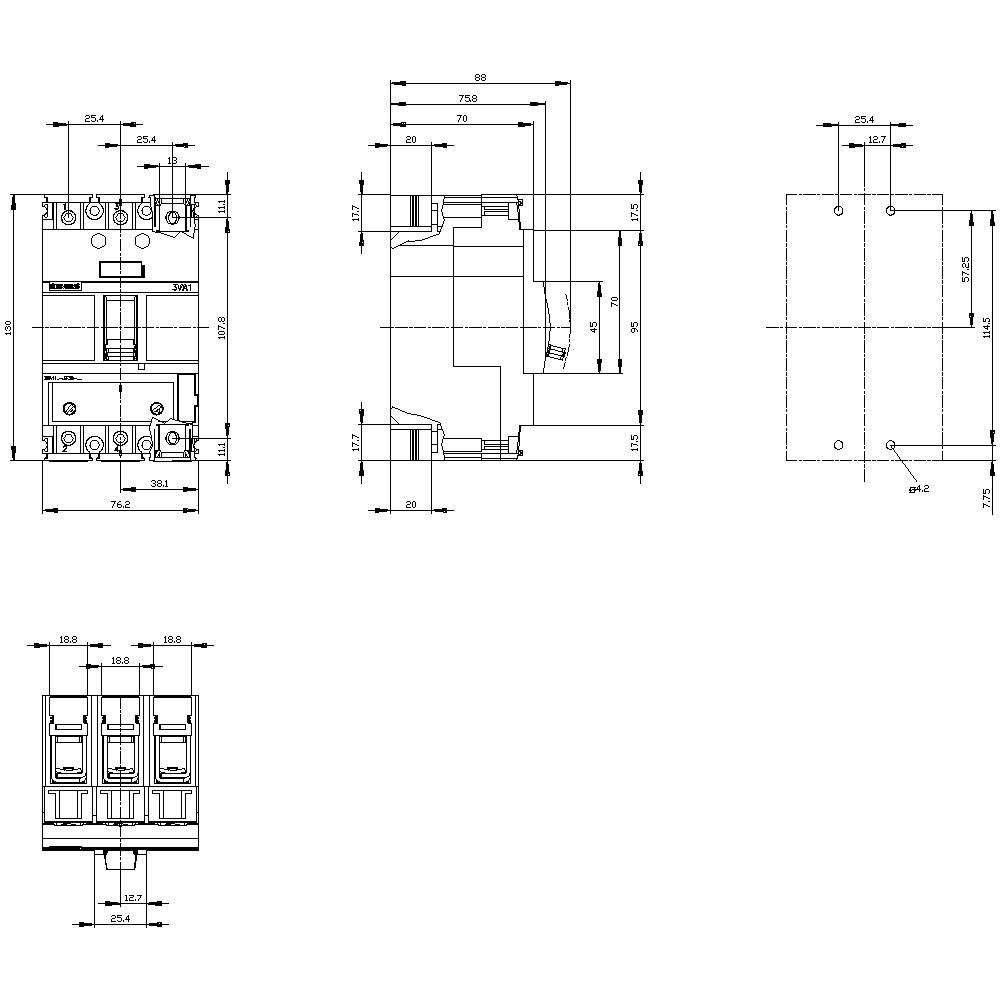

Technical drawing of an electrical switch with various views and detailed dimensions.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

125 A

Connection

Clamp

Type

3VA1112-5EF36-0AA0

Amperage adjustment range (min.)

88 A

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 659.00 / piece)

€ 659.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Power loss: 9.37 W
Weight: 1.05 kg
Mechanical life: 20000
Electrical life: 8000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3VA1112-5EF36-0AA0

Amperage adjustment range (min.): 88 A

Amperage adjustment range (max.): 125 A

Adjustment range (amperage): 88 - 125 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: M

OCR type: TM240

Connection: Clamp

: IP40

Depth: 70 mm

Width: 76.2 mm

Height: 130 mm

Dim: (W x H x D) 76.2 x 130 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 125 A

: 3

: 0

: 28.1 W

: IP40

: Front side

: FALSE

: Frame clamp

: Rocker lever

: 55 kA

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
