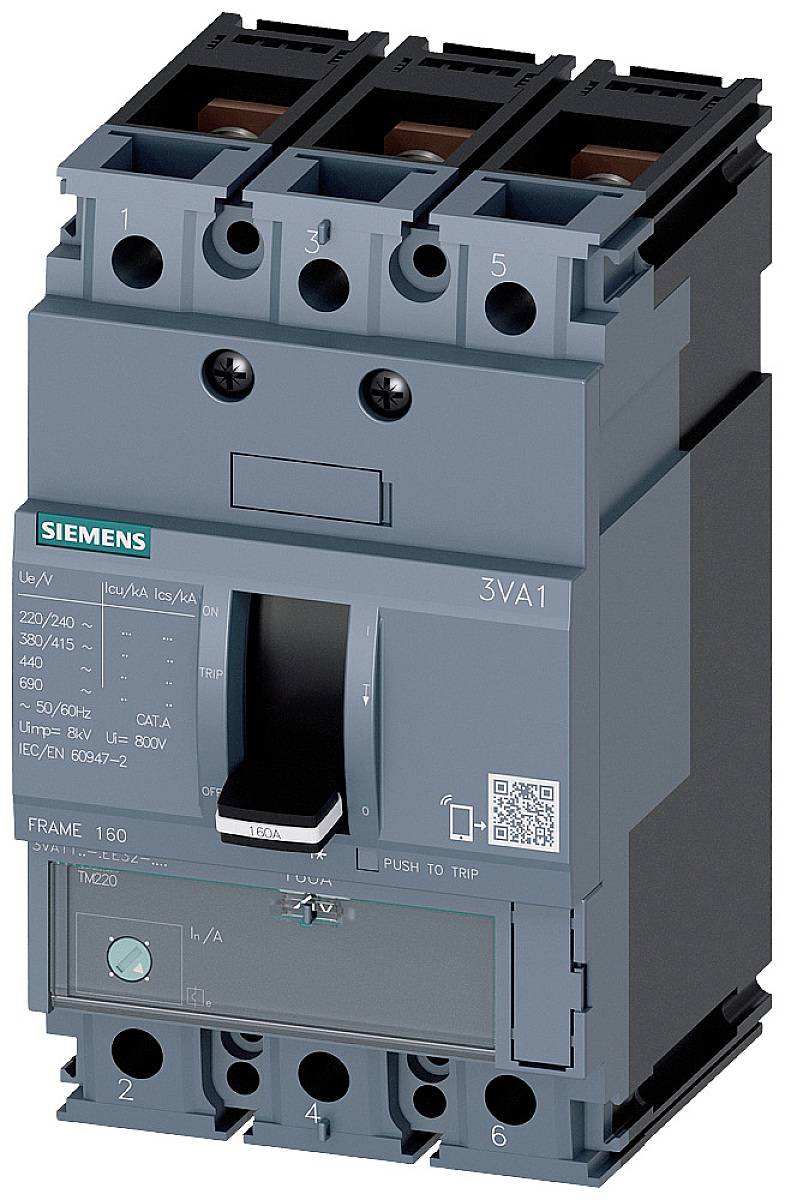

Name: Siemens 3VA1132-5EE32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 22 - 32 A Switching voltage (max.): 690
Brand: Siemens
SKU: 1724352
Availability: BackOrder

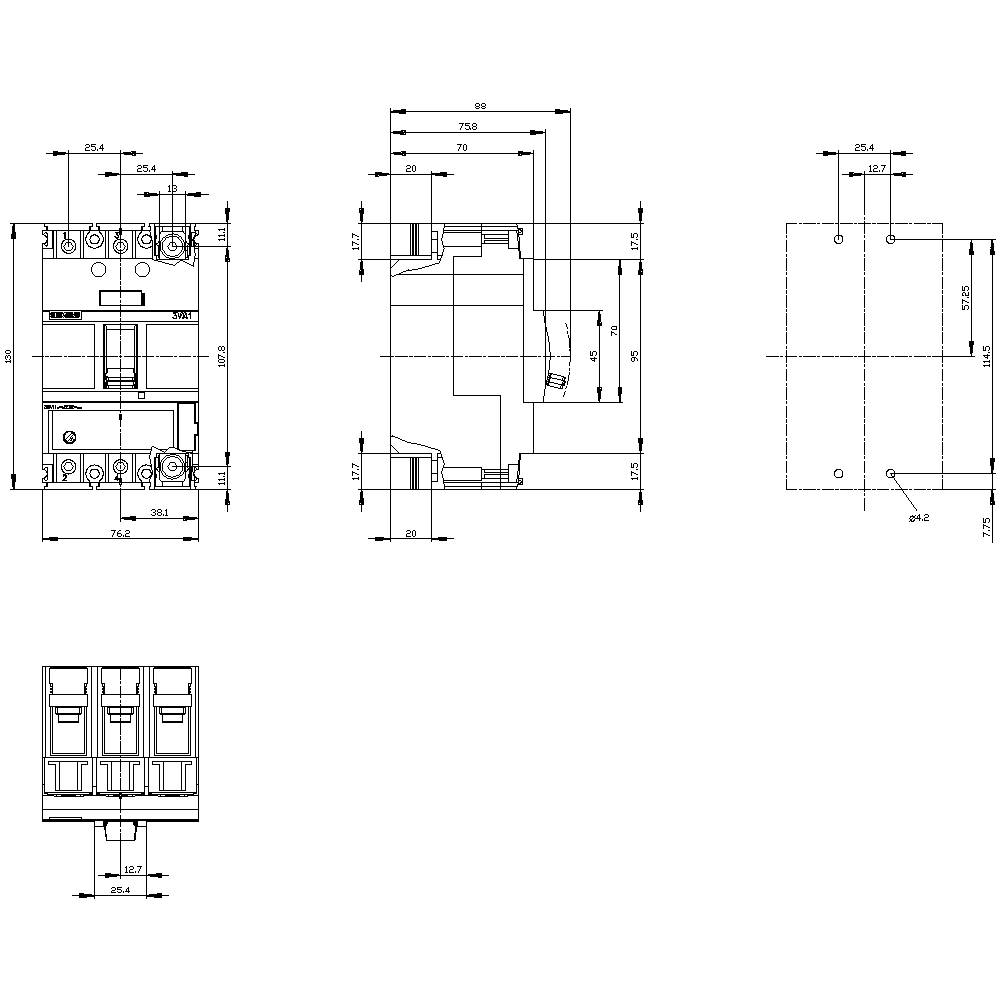

Technical drawing of a circuit breaker with front, side, and top views, with precise dimensional specifications in millimetres.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

32 A

Connection

Screws

Type

3VA1132-5EE32-0AA0

Amperage adjustment range (min.)

22 A

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 285.00 / piece)

€ 285.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: System Protection
Mechanical life: 20000
Electrical life: 8000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.
Power loss: 3.53 W
Weight: 0,954 kg

Product type: Circuit breaker

Type: 3VA1132-5EE32-0AA0

Amperage adjustment range (min.): 22 A

Amperage adjustment range (max.): 32 A

Adjustment range (amperage): 22 - 32 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: M

OCR type: TM220

Connection: Screws

: IP40

Depth: 70 mm

Width: 76.2 mm

Height: 130 mm

Dim: (W x H x D) 76.2 x 130 x 70 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 32 A

: 3

: 22-32 A

: 0

: 690-690 V

: 10.6 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: 55 kA

: 320-320 A

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
